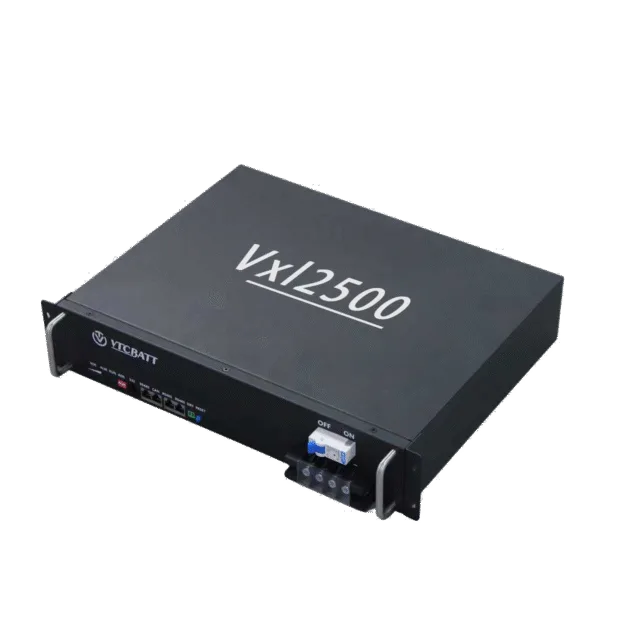

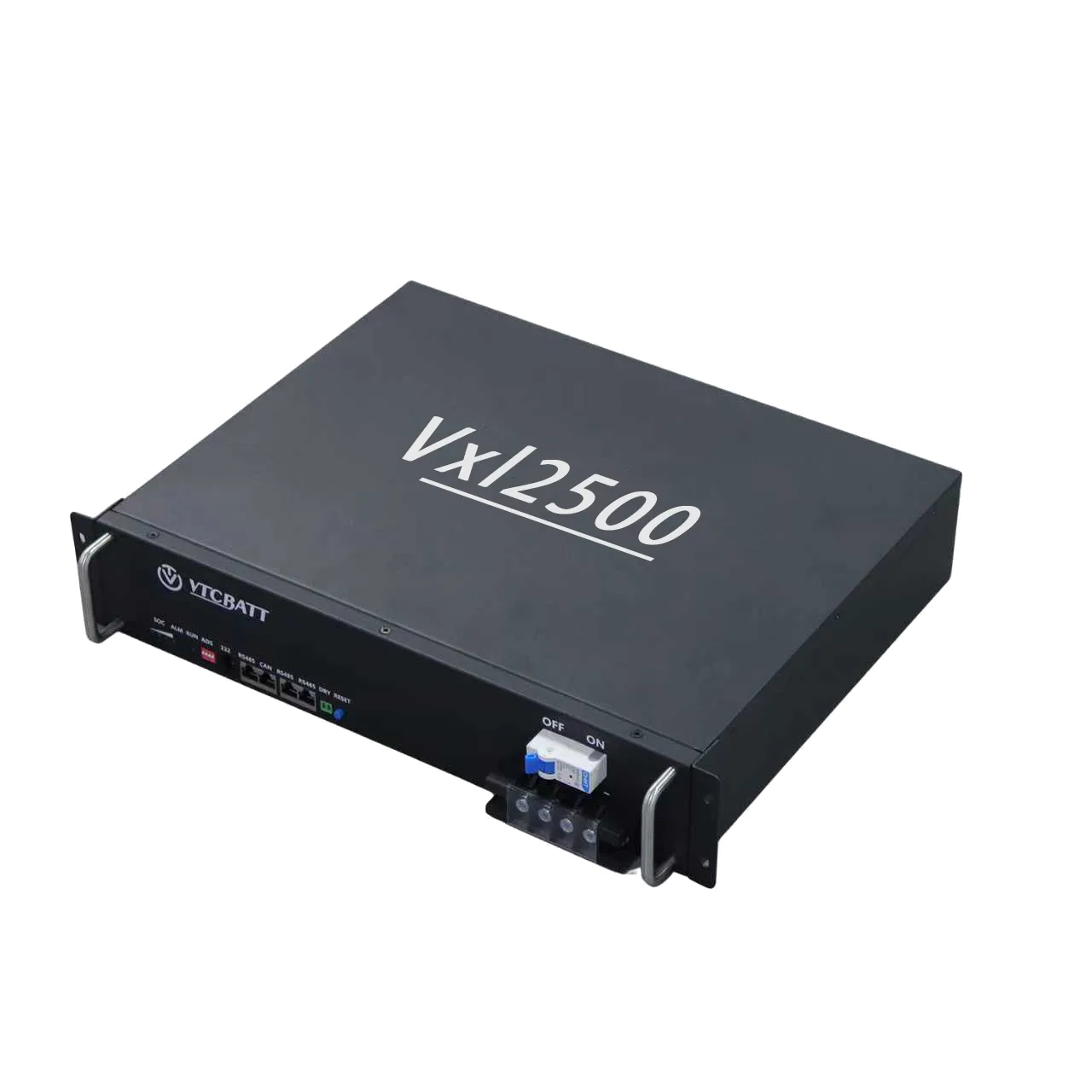

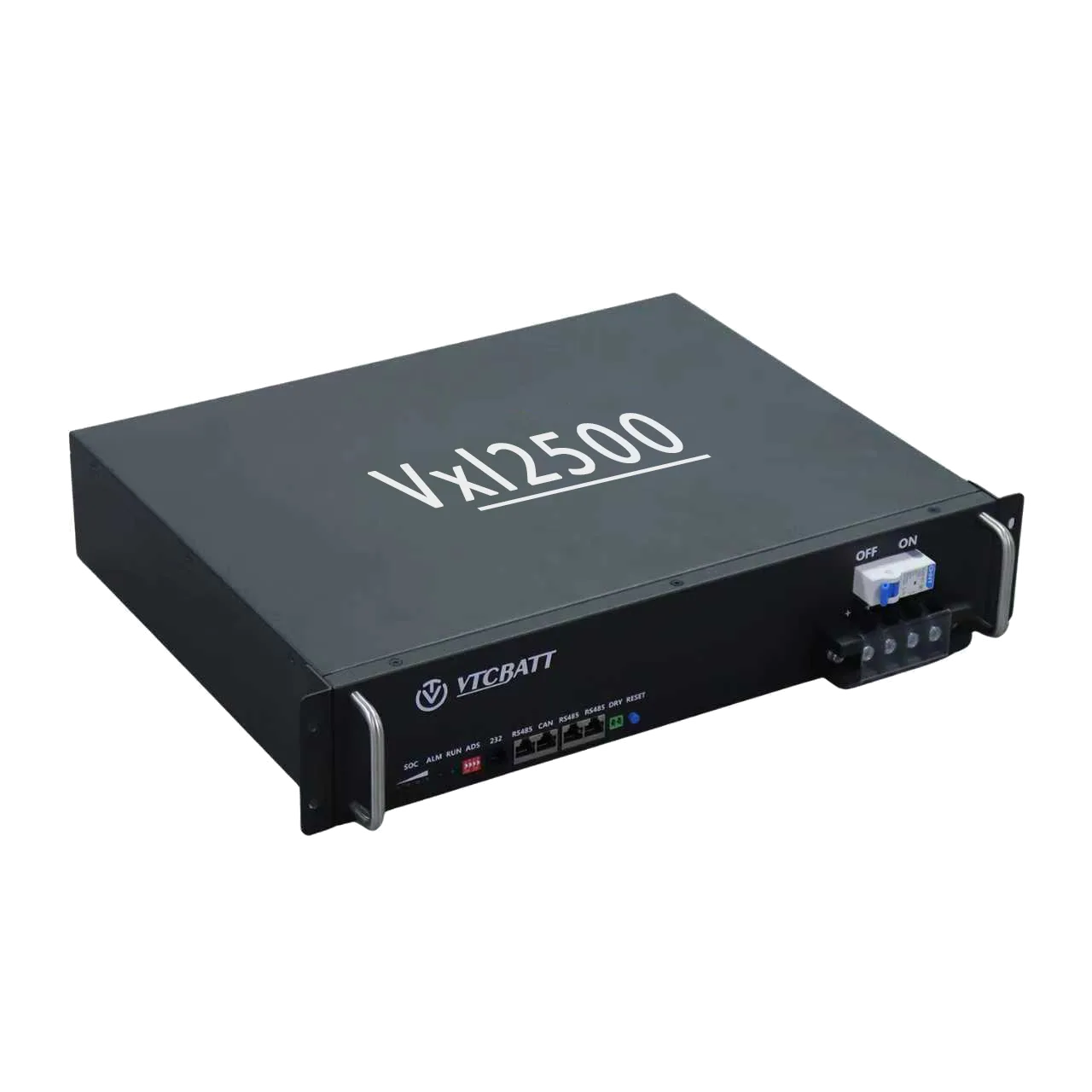

Rackmount ESS Battery – 51.2V(48V) 50AH Vxl2500

Rackmount ESS Battery - 51.2V(48V) 50AH Vxl2500
Rackmount ESS Battery - 51.2V(48V) 50AH Vxl2500 - Image 2

Rackmount ESS Battery – 51.2V(48V) 50AH Vxl2500

  • Nominal Voltage: 51.2V(48V)
  • Nominal Capacity: 50Ah
  • Stored Energy: 2.5 kWh
  • Dimension (L×W×H) In Millimeter: 430*442*136 mm
  • Weight lbs. (kg) No Counterweight: 156.53 lbs (25 kg)
  • Cycle Life: More than 6000 cycles at 0.2C
  • IP Rating: IP54

  • Long life – 6000+ cycles, safe LiFePO₄ chemistry.
  • Modular design – Easy expansion, flexible installation.
  • Smart BMS – Multi-protection, real-time monitoring.
  • Wide compatibility – Supports CAN/RS485 communication.
  • High efficiency – Compact, maintenance-free, fast charging.
  • Low Maintenance – No daily upkeep required.
ENQUIRY NOW
DATA SHEET

Products Details

Safe LiFePO4 Chemistry

Stable, non-flammable lithium iron phosphate ensures safety in industrial environments.

Broad Inverter Compatibility

Seamlessly integrates with major inverter brands for reliable solar energy storage.

APP Monitor

Remote OTA upgrades, WiFi and Bluetooth functionality, and app-based remote monitoring for easy system management.

Precise SOC Display

Accurate state‑of‑charge data shown after the first full battery charge.

10 Years Usage Life

Delivers 6,000+ cycles and charges in 0.2C with 99% efficiency.

Smart Battery Management

Built-in BMS offers real-time monitoring and multi-level protection.

Space & Maintenance Saving

Smaller battery size, no watering, no acid—zero maintenance required.

Clean & Durable Design

No gas emissions or spills, IP65-rated for harsh work environments.

Rack Mount ESS Lithium Battery Overview

This Rack Mount ESS battery utilizes high-performance LiFePO4 cells combined with an advanced smart BMS that provides comprehensive protections including voltage, current, temperature, and short circuit safeguards to ensure safe and stable operation. Its modular design supports standard rack installation, enabling easy integration into various energy storage systems and data center applications.

Equipped with remote monitoring and management capabilities via a dedicated mobile app, users can access real-time battery status and health data, enabling early fault detection and remote diagnostics to improve maintenance efficiency and minimize downtime. With high energy density and excellent cycle life, this battery pack delivers reliable long-term power for residential, commercial, and industrial energy storage needs.

Compact size and lightweight construction facilitate rapid deployment and scalability, making it an ideal solution for building efficient, intelligent, and green energy storage systems.

Source: ENF Solar: https://www.enfsolar.com/vtc-power

SPECS

Mode Vxl2500 Vxl5100 Vxl10000
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Combination 16S1P 16S1P 16S1P
Case Numbers 1 pc 1 pc 1 pc
Nominal Characteristic
Nominal Voltage 51.2V 51.2V 51.2V
Battery Capacity 50Ah 100Ah 200Ah
Nominal Energy Capacity 2.5KWh 5.12KWh 10KWh
Peak Output Current 100A 100A 100A
Round Trip Efficiency 80% DOD 80% DOD 80% DOD
Electrical Specifications
Voltage Range 40~58.4V 40~58.4V 40~58.4V
Max. Charging Current 100A 100A 100A
Max. Discharging Current 100A 100A 100A
Mechanical Specifications
Net Weight 25Kg 48Kg 95Kg
Dimension 430×442×136mm 430×442×136mm 442×520×320mm
Color Black/White/Customizable Black/White/Customizable Black/White/Customizable
Cooling Advanced Internal design & Natural Convention Advanced Internal design & Natural Convention Advanced Internal design & Natural Convention
Communication Specifications
Communication Port RS232/RS485/CAN RS232/RS485/CAN RS232/RS485/CAN
Operation Condition
Operation Temperature -20℃—60℃ -20℃—60℃ -20℃—60℃
Recommended Temperature 0℃—35℃ 0℃—35℃ 0℃—35℃
Operation Humidity 60%±25% 60%±25% 60%±25%
Designed Life > 10 years > 10 years > 10 years
Storage Conditions 10℃—50℃ 10℃—50℃ 10℃—50℃
Compliances
Certification CE/EN62619/UN38.3/ROHS CE/EN62619/UN38.3/ROHS CE/EN62619/UN38.3/ROHS
Standards EN61000-6-1:2007
EN61000-6-3:2007+A1:2011		 EN61000-6-1:2007
EN61000-6-3:2007+A1:2011		 EN61000-6-1:2007
EN61000-6-3:2007+A1:2011
Cycle life
0.2C at 25℃ 6000+ times(80% DOD) 6000+ times(80% DOD) 6000+ times(80% DOD)
0.5C at 25℃ 4000+ times(80% DOD) 4000+ times(80% DOD) 4000+ times(80% DOD)
1.0C at 25℃ 2500+ times(80% DOD) 2500+ times(80% DOD) 2500+ times(80% DOD)
Inverter Type
Match with all the mainstream inverter brands

VTCBATT Upgraded Smart Home ESS System

An advanced home energy storage system with WiFi, Bluetooth, App, and visual cloud monitoring for seamless remote management, real-time alarms, and easy software upgrades.

  • Wall-mounted design for fast, easy installation
  • Automatic detection of parallel battery, no manual setup
  • Remote mobile monitoring via WiFi and Bluetooth
  • Visual cloud platform for live battery management
  • Real-time battery and cell status monitoring
  • Remote BMS settings and calibration control
  • Over-the-air software and firmware upgrades
  • Instant alarms and remote maintenance notifications

ESS Lithium Ion Battery

Power your home with renewable energy

  • Advanced internal design.
  • Compact 3U Size
  • Life design:10 years
  • Warranty: 5 years
  • Cycle life:6000+ times at 80% DOD
  • Standard Rack type module and Easy installation
  • Support Parallel Connection Max 15pcs,up to 76.8KWH
  • Continuous Charging/ Discharging current:100A
  • Compatiable with multiple inverters.
  • RS485/CAN/232 communication
  • Built-In Safety – Smart BMS with Breaker On/Off Switch for Shipping & Installation
  • Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

Smart Rack Mount ESS Battery Monitor App

Real-time monitoring of battery voltage, current, and temperature. Enables remote diagnostics and alerts to ensure safe, stable operation and improve maintenance efficiency.

  • Real-time battery voltage, current, and temperature monitoring
  • Remote fault diagnosis and alert notifications
  • Historical data logging and trend analysis
  • Multi-device and multi-user management
  • Supports CAN, RS485, and Modbus communication protocols
  • Intelligent battery status evaluation and lifespan prediction
  • User role management and security
  • Remote firmware updates and maintenance support

Much better than lead-acid batteries!

Experience longer driving range, quicker recharges, and lightweight power with zero maintenance—engineered for superior performance and reliability in every ride.

  • Longer lifespan, reducing replacement frequency
  • Faster charging times for less downtime
  • Lightweight design improves vehicle efficiency
  • Maintenance-free, no need for watering or equalizing
  • Higher energy density for extended driving range
  • More environmentally friendly and safer chemistry
  • Consistent performance in a wide temperature range
Compatible with the mainstream inverters

SMA, Victron Energy, GoodWe, Solis Inverters, Schneider Electric, Deye, Growatt, IMEON Energy, Studer, Selectronic, Voltronic Power, Sofar Solar, Sermatec, Zucchetti Centro Sistemi, Redback Technologies, Alpha ESS, Sungrow, LUX PowerTek, Morningstar, Delios, Ingeteam, MLT Power, Steca (A KATEK Brand), SAJ, SolarMax, Axioma Energy, Phocos, Western Co., Effekta, Kehua Tech, INVT, TBB, MUST, Moixa, Megarevo, AiSWEI, FSP, LIVOLTEK, SenerQy, SolaX Power, Opti-Solar Inverter Power, Sorotec, GMDE

VTCBATT ESS instruction: Tested, Proven, Trusted

welcome more partners to learn and collaborate with us.

Rack-Mounted ESS Home Application Demo

VTCBATT Rack-Mounted ESS Feature and Application Instruction

VTCBATT Bluetooth,WIFI and EMS App to monitor all the battery status

5KWh Rackmount ESS battery communicates with Growatt inverter

Powered by Trust, Proven by Action
From Installation Sites to Global Shows — Every Moment Reflects Our ESS in Motion

APPENDIX

Discharge & Charge Curve

PRODUCT APPLICATION

FAQs for ,

What are the key technical specifications of the VTCBATT ESS Rackmount Battery?
The VTCBATT ESS Rackmount Battery uses LiFePO4 cells arranged in a 16S1P configuration within a single battery pack. The nominal voltage is 51.2V, and the pack capacities range from 50Ah to 200Ah. These battery packs support a peak output current of 100A and operate within a voltage range of 40–58.4V. For larger energy storage needs, up to 16 packs can be connected in parallel to expand total capacity. The battery is designed for a lifespan of over 10 years and provides over 6000 cycles at 80% depth of discharge (0.2C). It features compact dimensions, advanced internal cooling, and supports RS232/RS485/CAN communication protocols, compatible with mainstream inverter brands.
VTCBATT’s Rackmount battery is engineered with safety as a top priority. It complies with internationally recognized certifications including CE, EN62619, UN38.3, and ROHS, ensuring it meets strict standards for quality, environmental safety, and transport. The battery features an advanced Battery Management System (BMS) that provides multiple layers of protection, including safeguards against overcharge, over-discharge, overcurrent, short circuits, and extreme temperatures. These comprehensive protections work together to ensure safe, stable, and reliable operation in a wide range of environments and applications, giving you peace of mind every time you use the battery.
The battery is designed to operate safely within a wide temperature range from -20℃ to 60℃, ensuring reliable performance even in challenging environments. However, for optimal efficiency and to maximize battery lifespan, the recommended operating temperature range is 0℃ to 35℃. When it comes to storage, maintaining the battery at temperatures between 10℃ and 50℃ helps preserve its health and performance over time. Proper temperature management during both use and storage is key to getting the best long-term value from your battery system.
Yes, VTCBATT batteries support multiple communication interfaces such as RS232, RS485, and CAN, enabling seamless integration with advanced Battery Management Systems (BMS). This allows for real-time remote monitoring and management through a dedicated mobile app or desktop platform. Users can conveniently check vital battery information such as state of charge, voltage, current, temperature, and overall health from anywhere at any time. The app also provides diagnostic alerts and maintenance reminders, helping you quickly identify and address potential issues before they become serious. This remote monitoring capability ensures optimal battery performance, extends service life, and makes maintenance more efficient and proactive—perfect for fleet managers, residential users, or commercial operators who want peace of mind and control over their energy systems.
his battery is compatible with all major mainstream inverter brands commonly used in residential, commercial, and industrial energy storage systems. Thanks to its flexible communication interfaces (such as RS232, RS485, and CAN) and standardized voltage profiles, it easily integrates with popular inverters from brands like SMA, SolarEdge, OutBack, Schneider Electric, Victron Energy, Growatt, and more. This broad compatibility allows you to design and deploy energy storage solutions with confidence, knowing the battery will work smoothly with your existing or planned inverter setup.
The battery delivers an impressive cycle life of over 6000 charge-discharge cycles when used at an 80% Depth of Discharge (DoD) and a discharge rate of 0.2C. This long lifespan is achieved through the use of high-quality LiFePO₄ cells known for their thermal stability and durability, combined with an advanced Battery Management System (BMS). The BMS continuously monitors and balances each cell, protecting against overcharge, over-discharge, overcurrent, and temperature extremes. This careful management prevents premature degradation, maintains stable operation, and ensures the battery provides reliable performance for many years, offering excellent long-term value and peace of mind.
Yes, VTCBATT provides comprehensive customization services to tailor batteries precisely to your needs. You can customize battery casing colors to match your brand or product design, select from various capacity configurations to optimize runtime and power, and choose different communication protocols (like CAN, RS485, or RS232) for seamless integration with your systems. Beyond customization, we offer professional technical support and after-sales service to ensure your custom battery solution performs reliably and meets your exact specifications, making the upgrade or integration process smooth and hassle-free.
