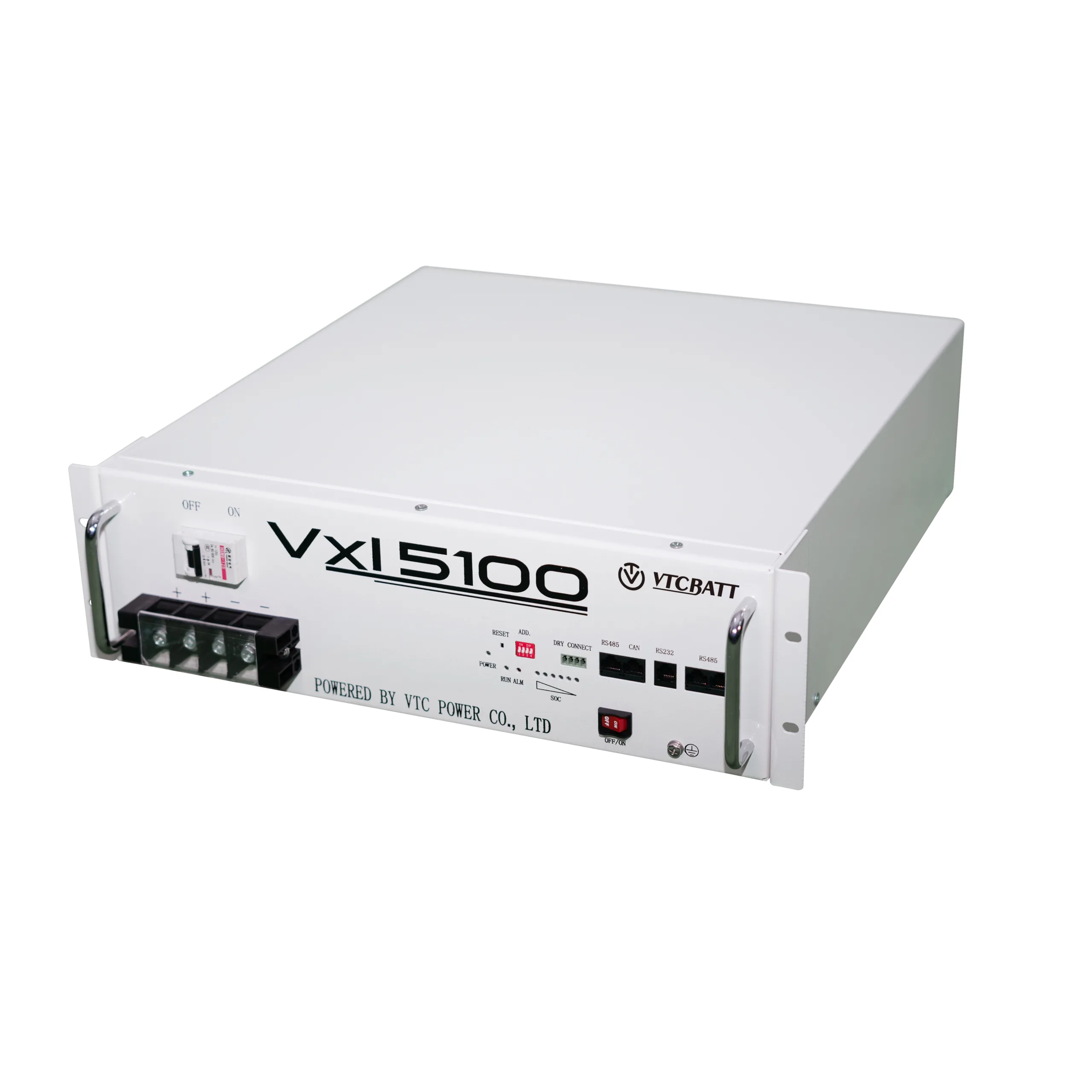

Rack-LiFePO4-Battery-ESS-48V-100AH-Vxl5100-main

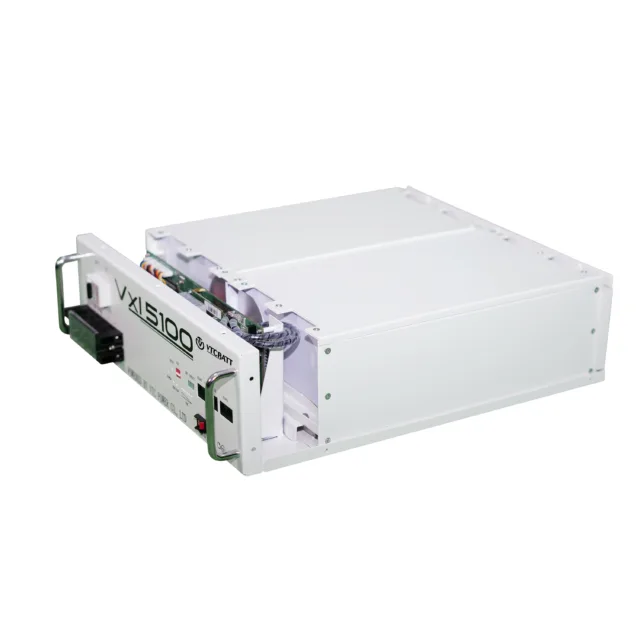

Rack LiFePO4 Battery ESS - 48V 100AH Vxl5100 1

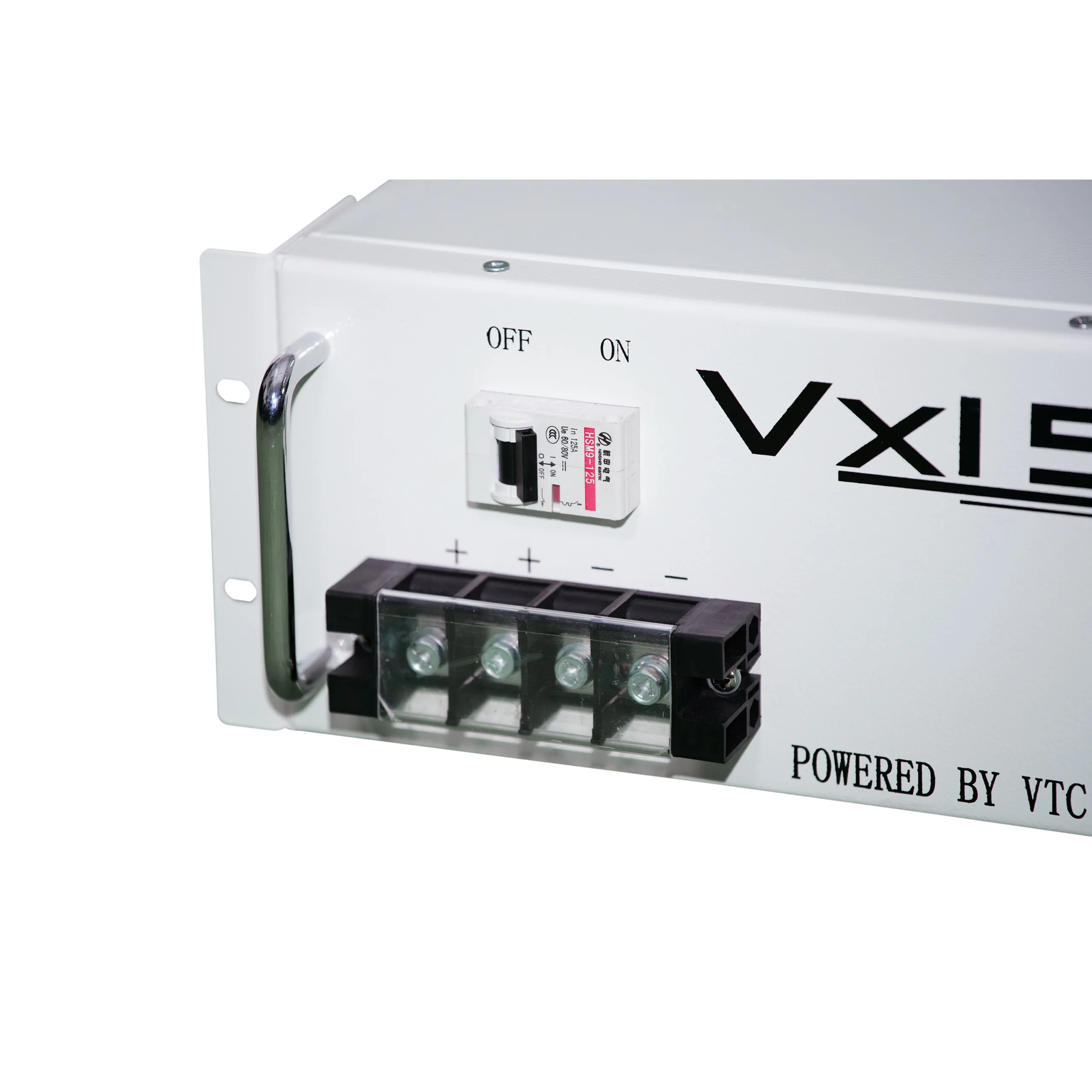

Rack LiFePO4 Battery ESS - 48V 100AH Vxl5100 2

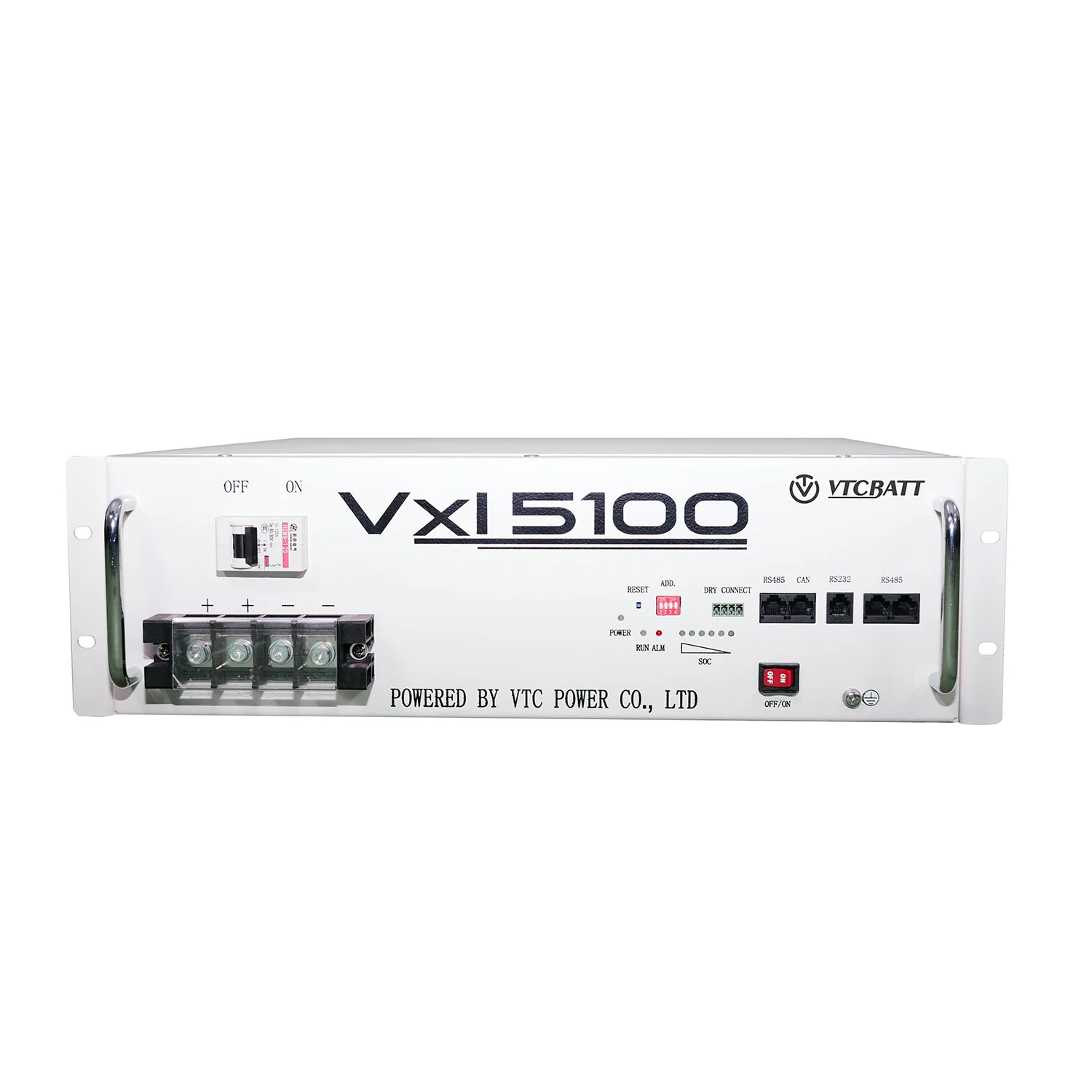

Rack-LiFePO4-Battery-ESS-48V-100AH-Vxl5100-3

Rackmount ESS Battery – 51.2V(48V) 100AH Vxl5100

  • Nominal Voltage: 51.2V(48V)
  • Nominal Capacity: 100Ah
  • Stored Energy: 5.12 kWh
  • Dimension (L×W×H) In Millimeter: 430×442×136 mm
  • Weight lbs. (kg) No Counterweight: 105.82 lbs (48 kg)
  • Cycle Life: More than 6000 cycles at 0.2C
  • IP Rating: IP54

  • Long life – 6000+ cycles, safe LiFePO₄ chemistry.
  • Modular design – Easy expansion, flexible installation.
  • Smart BMS – Multi-protection, real-time monitoring.
  • Wide compatibility – Supports CAN/RS485 communication.
  • High efficiency – Compact, maintenance-free, fast charging.
  • Low Maintenance – No daily upkeep required.
ENQUIRY NOW
DATA SHEET

Products Details

Safe LiFePO4 Chemistry

Stable, non-flammable lithium iron phosphate ensures safety in industrial environments.

Broad Inverter Compatibility

Seamlessly integrates with major inverter brands for reliable solar energy storage.

APP Monitor

Remote OTA upgrades, WiFi and Bluetooth functionality, and app-based remote monitoring for easy system management.

Precise SOC Display

Accurate state‑of‑charge data shown after the first full battery charge.

10 Years Usage Life

Delivers 6,000+ cycles and charges in 0.2C with 99% efficiency.

Smart Battery Management

Built-in BMS offers real-time monitoring and multi-level protection.

Space & Maintenance Saving

Smaller battery size, no watering, no acid—zero maintenance required.

Clean & Durable Design

No gas emissions or spills, IP65-rated for harsh work environments.

Rack Mount ESS Lithium Battery Overview

This Rack Mount ESS battery utilizes high-performance LiFePO4 cells combined with an advanced smart BMS that provides comprehensive protections including voltage, current, temperature, and short circuit safeguards to ensure safe and stable operation. Its modular design supports standard rack installation, enabling easy integration into various energy storage systems and data center applications.

Equipped with remote monitoring and management capabilities via a dedicated mobile app, users can access real-time battery status and health data, enabling early fault detection and remote diagnostics to improve maintenance efficiency and minimize downtime. With high energy density and excellent cycle life, this battery pack delivers reliable long-term power for residential, commercial, and industrial energy storage needs.

Compact size and lightweight construction facilitate rapid deployment and scalability, making it an ideal solution for building efficient, intelligent, and green energy storage systems.

Source: ENF Solar: https://www.enfsolar.com/vtc-power

SPECS

Mode Vxl2500 Vxl5100 Vxl10000
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Combination 16S1P 16S1P 16S1P
Case Numbers 1 pc 1 pc 1 pc
Nominal Characteristic
Nominal Voltage 51.2V 51.2V 51.2V
Battery Capacity 50Ah 100Ah 200Ah
Nominal Energy Capacity 2.5KWh 5.12KWh 10KWh
Peak Output Current 100A 100A 100A
Round Trip Efficiency 80% DOD 80% DOD 80% DOD
Electrical Specifications
Voltage Range 40~58.4V 40~58.4V 40~58.4V
Max. Charging Current 100A 100A 100A
Max. Discharging Current 100A 100A 100A
Mechanical Specifications
Net Weight 25Kg 48Kg 95Kg
Dimension 430×442×136mm 430×442×136mm 442×520×320mm
Color Black/White/Customizable Black/White/Customizable Black/White/Customizable
Cooling Advanced Internal design & Natural Convention Advanced Internal design & Natural Convention Advanced Internal design & Natural Convention
Communication Specifications
Communication Port RS232/RS485/CAN RS232/RS485/CAN RS232/RS485/CAN
Operation Condition
Operation Temperature -20℃—60℃ -20℃—60℃ -20℃—60℃
Recommended Temperature 0℃—35℃ 0℃—35℃ 0℃—35℃
Operation Humidity 60%±25% 60%±25% 60%±25%
Designed Life > 10 years > 10 years > 10 years
Storage Conditions 10℃—50℃ 10℃—50℃ 10℃—50℃
Compliances
Certification CE/EN62619/UN38.3/ROHS CE/EN62619/UN38.3/ROHS CE/EN62619/UN38.3/ROHS
Standards EN61000-6-1:2007
EN61000-6-3:2007+A1:2011		 EN61000-6-1:2007
EN61000-6-3:2007+A1:2011		 EN61000-6-1:2007
EN61000-6-3:2007+A1:2011
Cycle life
0.2C at 25℃ 6000+ times(80% DOD) 6000+ times(80% DOD) 6000+ times(80% DOD)
0.5C at 25℃ 4000+ times(80% DOD) 4000+ times(80% DOD) 4000+ times(80% DOD)
1.0C at 25℃ 2500+ times(80% DOD) 2500+ times(80% DOD) 2500+ times(80% DOD)
Inverter Type
Match with all the mainstream inverter brands

VTCBATT Upgraded Smart Home ESS System

An advanced home energy storage system with WiFi, Bluetooth, App, and visual cloud monitoring for seamless remote management, real-time alarms, and easy software upgrades.

  • Wall-mounted design for fast, easy installation
  • Automatic detection of parallel battery, no manual setup
  • Remote mobile monitoring via WiFi and Bluetooth
  • Visual cloud platform for live battery management
  • Real-time battery and cell status monitoring
  • Remote BMS settings and calibration control
  • Over-the-air software and firmware upgrades
  • Instant alarms and remote maintenance notifications

ESS Lithium Ion Battery

Power your home with renewable energy

  • Advanced internal design.
  • Compact 3U Size
  • Life design:10 years
  • Warranty: 5 years
  • Cycle life:6000+ times at 80% DOD
  • Standard Rack type module and Easy installation
  • Support Parallel Connection Max 15pcs,up to 76.8KWH
  • Continuous Charging/ Discharging current:100A
  • Compatiable with multiple inverters.
  • RS485/CAN/232 communication
  • Built-In Safety – Smart BMS with Breaker On/Off Switch for Shipping & Installation
  • Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

Smart Rack Mount ESS Battery Monitor App

Real-time monitoring of battery voltage, current, and temperature. Enables remote diagnostics and alerts to ensure safe, stable operation and improve maintenance efficiency.

  • Real-time battery voltage, current, and temperature monitoring
  • Remote fault diagnosis and alert notifications
  • Historical data logging and trend analysis
  • Multi-device and multi-user management
  • Supports CAN, RS485, and Modbus communication protocols
  • Intelligent battery status evaluation and lifespan prediction
  • User role management and security
  • Remote firmware updates and maintenance support

Much better than lead-acid batteries!

Experience longer driving range, quicker recharges, and lightweight power with zero maintenance—engineered for superior performance and reliability in every ride.

  • Longer lifespan, reducing replacement frequency
  • Faster charging times for less downtime
  • Lightweight design improves vehicle efficiency
  • Maintenance-free, no need for watering or equalizing
  • Higher energy density for extended driving range
  • More environmentally friendly and safer chemistry
  • Consistent performance in a wide temperature range
Compatible with the mainstream inverters

SMA, Victron Energy, GoodWe, Solis Inverters, Schneider Electric, Deye, Growatt, IMEON Energy, Studer, Selectronic, Voltronic Power, Sofar Solar, Sermatec, Zucchetti Centro Sistemi, Redback Technologies, Alpha ESS, Sungrow, LUX PowerTek, Morningstar, Delios, Ingeteam, MLT Power, Steca (A KATEK Brand), SAJ, SolarMax, Axioma Energy, Phocos, Western Co., Effekta, Kehua Tech, INVT, TBB, MUST, Moixa, Megarevo, AiSWEI, FSP, LIVOLTEK, SenerQy, SolaX Power, Opti-Solar Inverter Power, Sorotec, GMDE

VTCBATT ESS instruction: Tested, Proven, Trusted

welcome more partners to learn and collaborate with us.

Rack-Mounted ESS Home Application Demo

VTCBATT Rack-Mounted ESS Feature and Application Instruction

VTCBATT Bluetooth,WIFI and EMS App to monitor all the battery status

5KWh Rackmount ESS battery communicates with Growatt inverter

Powered by Trust, Proven by Action
From Installation Sites to Global Shows — Every Moment Reflects Our ESS in Motion

APPENDIX

Discharge & Charge Curve

PRODUCT APPLICATION

FAQs for ,

What is the nominal capacity and stored energy of the Vxl5100 battery pack?
The Vxl5100 battery pack features a nominal capacity of 100Ah and operates at a nominal voltage of 51.2V, which means it stores approximately 5.12 kWh of energy. This combination provides a robust energy reserve suitable for a wide range of applications, delivering reliable and consistent power output for your energy storage needs.
Yes, Vxl5100 battery packs can be connected in parallel to increase total capacity and stored energy. You can combine up to 16 Vxl5100 packs in parallel, allowing you to build medium to large-scale energy storage systems tailored to your specific power and runtime needs. This modular design offers great flexibility, letting you scale your battery bank as your energy requirements grow, while maintaining safe, balanced, and efficient operation through the integrated Battery Management Systems (BMS) in each pack.
The Vxl5100 battery pack can deliver a peak power output of approximately 5.12 kW. This is based on its maximum continuous current of 100A at a nominal voltage of 51.2V (Power = Voltage × Current). This high instantaneous power allows the pack to handle demanding loads and provides strong, reliable performance for a wide range of applications, including energy storage and backup power systems.
The Vxl5100 battery pack is designed for long-term reliability, sustaining more than 6000 charge-discharge cycles when operated at an 80% Depth of Discharge (DoD) and a 0.2C discharge rate. This means you can expect many years of dependable service even with frequent cycling, making it an excellent choice for demanding energy storage applications that require consistent performance over time.
The Vxl5100 battery pack has compact dimensions of 430 × 442 × 136 mm (L × W × H) and weighs approximately 48 kg (about 106 lbs). This size and weight make it well-suited for installations where space is limited but robust energy capacity is needed. Its relatively slim profile allows for flexible placement in racks or cabinets, while the weight remains manageable for standard handling and setup procedures.
To keep your Vxl5100 battery pack performing at its best and lasting as long as possible, follow these maintenance tips: Maintain Proper Temperature: Operate and store the battery within the recommended temperature range (ideally 0°C to 35°C) to prevent stress on the cells. Avoid Over-Discharge and Overcharge: Use a compatible charger and monitor battery levels to prevent deep discharges or excessive charging, which can shorten battery life. Ensure Good Ventilation: Install the battery in a well-ventilated area to help dissipate heat during operation and charging. Regularly Check BMS Data: Use the battery’s built-in Battery Management System to monitor voltage, current, temperature, and overall health, ensuring early detection of any issues. Keep Terminals Clean: Periodically inspect and clean battery terminals to maintain good electrical connections. Store Properly: If storing for extended periods, keep the battery partially charged (around 50–70%) and check charge levels every few months. Following these simple steps will help you maximize reliability, safety, and service life of your Vxl5100 battery pack.
The Vxl5100 battery pack is versatile and well-suited for a variety of applications. It’s ideal for residential energy storage, helping homeowners store solar power for use during evenings or outages. Small commercial setups can rely on it for backup power to keep essential equipment running smoothly. It also fits perfectly into renewable energy systems, balancing intermittent generation with steady supply. Thanks to its moderate capacity and compact size, the Vxl5100 is a great choice whenever you need reliable, scalable energy storage without taking up too much space. Whether for off-grid cabins, small businesses, or emergency backup, it delivers consistent performance and long-lasting value.
