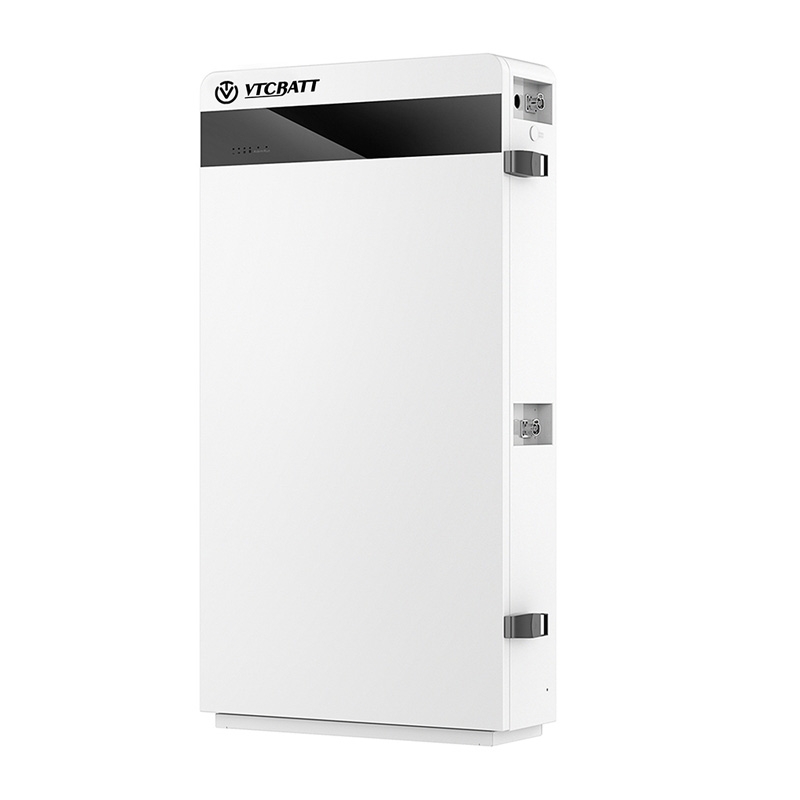

PW7100 7Kwh 51.2V 140Ah Floor Type Lifepo4 ESS Battery
PW7100 7Kwh 51.2V 140Ah 6000+ times cycle life Floor Type ESS Lifepo4 Energy Storage Battery Home Power Storage
Battery Type: Advanced lithium iron phosphate battery
Model No: PW7100
Rated voltage: 51.2V
Capacity: 140Ah
Size: 525*170*1000mm
Application: Home ESS,Solar ESS,Solar off grid backup system
Cycle life: 6000+ times at 80% DOD
Product Information
PW7100 7Kwh 51.2V 140Ah Floor Mout ESS Lifepo4 battery
PW7100 7Kwh Powerwall Ess Lifepo4 battery
PW7100 Technical Details:
Mode PW7100
Battery Type Lifepo4 battery
Battery Combination 16S1P
Case Numbers 1 pc
Mount type Floor Mount
Nominal Characteristic
Nominal Voltage 51.2V
Battery Capacity 140Ah
Nominal Energy Capacity 7KWh
Peak Output Current 100A
Round trip Efficiency 96%-99%
Electrical Specifications
Voltage Range 58.4V
Max. Charging Current 100A
Max. Discharging Current 100A
Mechanical Specifications
Net Weight 75.0kg
Dimension 155mmX860mmX485mm
Color White
Cooling Nature
Communication Specifications
Communication Port RS485/RS232/CAN
Operation Condition
Operation Temperature -20-65℃
Recommended Temperature 0-65℃
Operation Humidity 60%±25%
Storage Conditions 0~40℃
Certification CE/IEC/UN38.3
Standards EN61000-6-1:2007 EN61000-6-3:2007+A1:2011
Inverter Type Goodwe,Victron Energy,Growatt,Pylontech, Voltronics,Deye,Inhenergy etc
Warranty 3 years
Life design 10+ years
Cycle life
0.2C  at  room temp 6000+ times( 80% DOD)
0.5C  at room temp 4000+ times( 80% DOD)
1.0C  at room temp 2500+ times( 80% DOD)
Manufacturing Technology:
Declaration:VTC Power produce the PW7100 7Kwh Floor Mount ESS Lifepo4 battery cell by ourselves and insist in using brand new and grade A cells only for safety and best battery pack performance.
Warning:Now lots of other competitors use recycled cells.Recycled cells can’t ensure the constancy of the cells and BMS effective management,which will put lots of safety issue and danger in household.
VTC Power Cell production process:
PW7100 7Kwh Powerwall Ess Lifepo4 battery
VTC Power Battery Pack Assemble process:
PW7100 7Kwh Powerwall Ess Lifepo4 battery

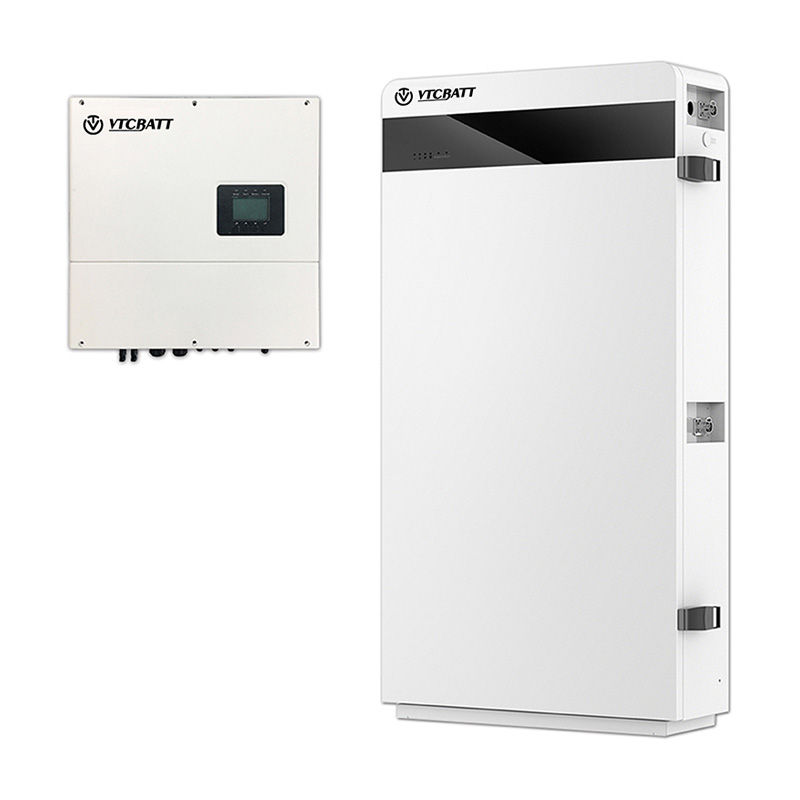

Matching Inverter:
PW7100 7Kwh Floor Mount Lifepo4 ESS Battery Matching multiple brand inverter via RS485/CAN communication protocol.Its RS232 communication protocol can support PC data reading of battery SOH,capacity and battery charge&discharge status.
PW7100 7Kwh Powerwall Ess Lifepo4 battery
Discharge&Charge Curve:
PW7100 7Kwh Powerwall Ess Lifepo4 battery

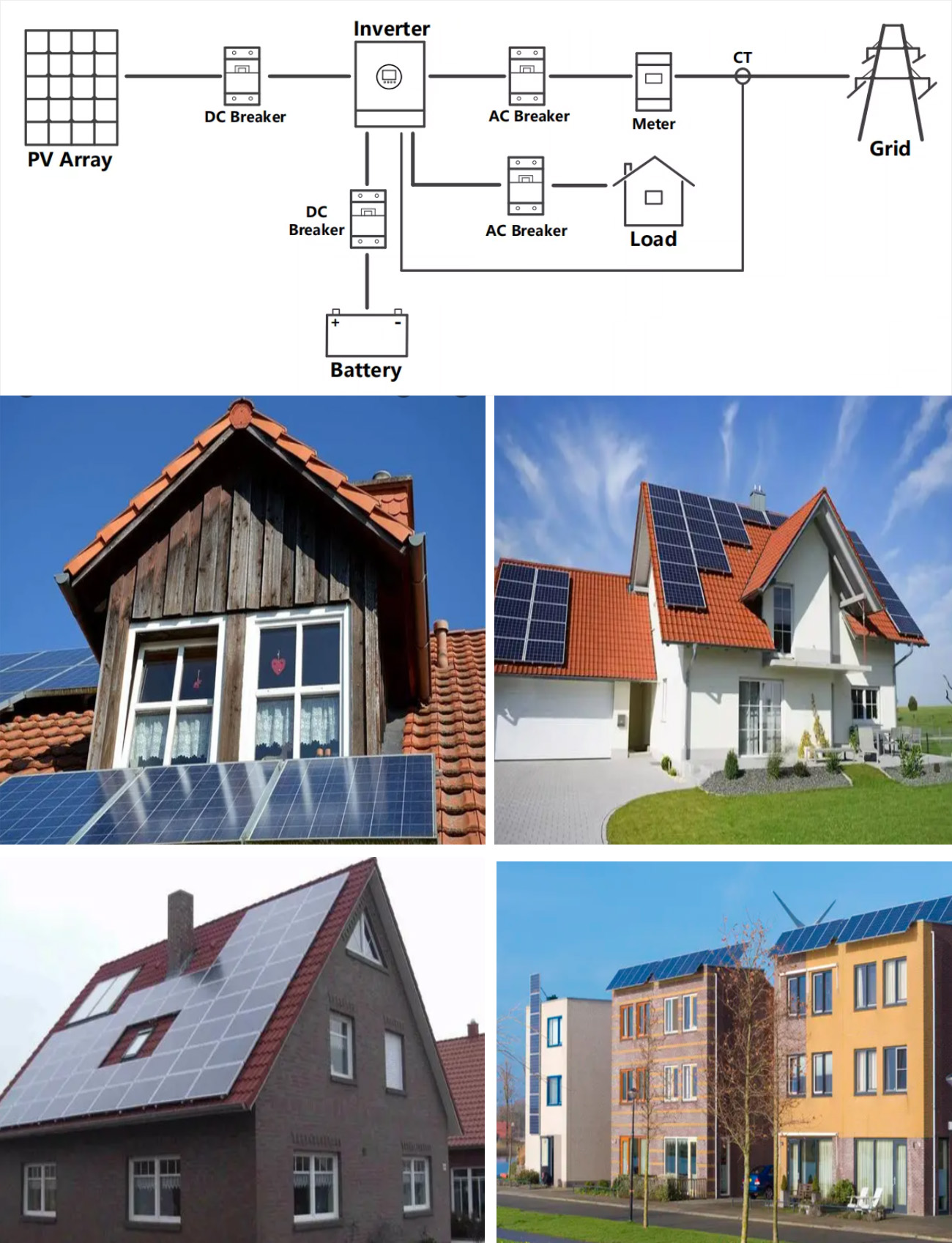

Project Cases:
6000+ families in Germany,Europe,South Africa,Australia choose the PW7100 7Kwh 51.2V 140Ah Floor Mount ESS Lifepo4 battery for their home power supply.
PW7100 7Kwh Powerwall Ess Lifepo4 battery
PW7100 7Kwh Powerwall Ess Lifepo4 battery
