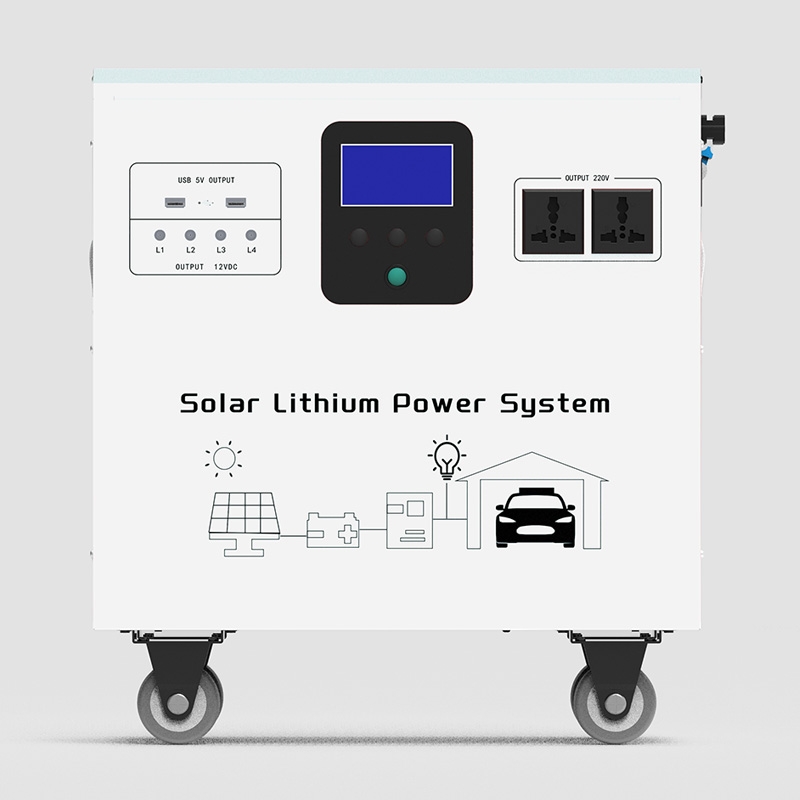

Vtc100AI 1.2Kwh 12.8V 100Ah All In One ESS Lifepo4 Energy Storage System
Vtc100Al 1.2Kwh 12.8V 100Ah 6000+ times cycle life All In One ESS Lifepo4 Energy Storage Battery Home Power Storage
Specification:
Battery Type: Advanced lithium ion phosphate battery
Model No: Vtc100Al
Brand: VTCBATT
Rated voltage: 12.8V
Capacity: 100Ah
Size: 400*370*190mm
Application: Home ESS,Solar ESS,Solar off grid backup system
Cycle life: 6000+ times at 80% DOD
Product Information
Vtc100Al 1.2Kwh 12.8V 100Ah All In One ESS Lifepo4 battery
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
Vtc100Al Technical Details:
Item Name Specification Remark
Display System Display Screen Type liquid crystal display touch screen
Background light Full Colour
Lithium Battery Pack Battery Type LiFePo4
Rated Energy 1200WH
Rated Capacity 100Ah
Rated Voltage 12.8V
Cycle Life >6000times
BMS Discharge characteristic Continuous Current 100A
Over current protection 120A
Charge characteristic Charge Voltage 14.6V
Charge Current ≤20A
Over-charge Protection Single cell Cut-off voltage 3.65V
Single cell Recovery Voltage 3.58V
Over-discharge Protection Single cell Cut-off Voltage 2.8V
Single cell Recovery Voltage 3.0V
Over-current Protection Overcurrent detection current 130A
Overcurrent protection release condition Release load
Short Circuit Protection Short Circuit Protection Enable
Short circuit protection release condition Release load
Self-consumption current Operating mode power consumption ≤50mA
Idle mode power consumption ≤200uA
Charging Input AC Charging Input Rated Input Voltage (V) 110V-220V 50/60HZ
AC maximum input voltage AC300V
AC maximum input current 20A
Over-current Protection Yes
Interface Type Wire presssure terminal
Solar PV Charging Input Interface Type Wire presssure terminal
Rated Input Voltage (V) DC380V
Input Voltage Range(V) 120-450V
Input Power 1000W
Positive and negative pole insertion Yes
reverse protection
Over-current Protection Yes
AC Output Output Waveform Pure sine wave
(Vac)Output Voltage 1 220V-240V
Output port Voltage 2 USB 5V
Output port Voltage 3 12V DC
(Hz)Output Frequency 50HZ/60HZ
Output power 1000W
No-load Power Consumption 100W
Inversion Efficiency ≥90%
Under-voltage Output Protection Yes
Over-voltage Output Protection Yes
Over-load Output Protection Yes
Short-circuit Output Protection Yes
Released condition of Short-circuit Protection Disconnect the load, Charge to activate
Communication mode Wireless connections WIFI
Environment Environment Temperature 0℃-50℃
Charge Temperature(℃) 0℃-45℃
Humidity(%) 0-90%
Cooling Forced air-cooling
Dimension (L/W/H(MM) 400*370*190
Weight Net Weight 25KG
Advantages:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
Operation And Display Panel:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery

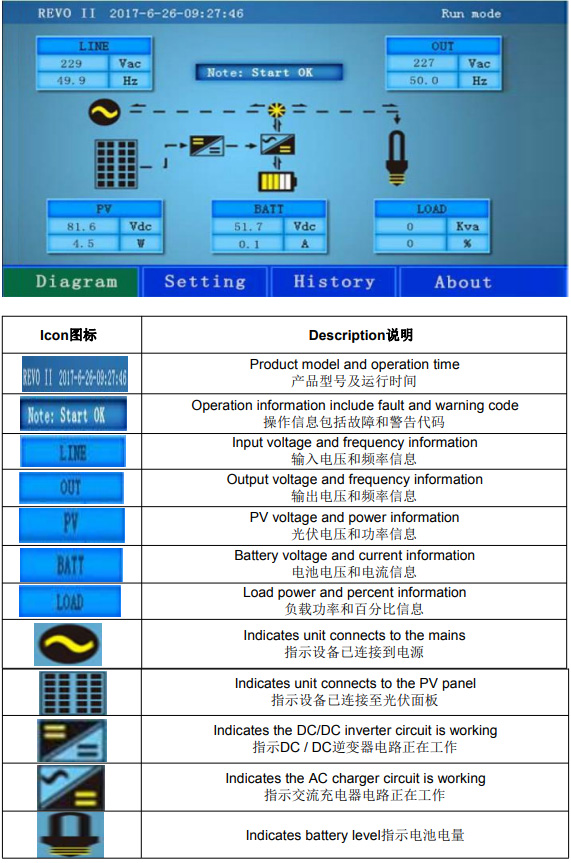

LCD display Icons:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
Manufacturing Technology:
Declaration:VTC Power produce the Vtc100Al 1.2Kwh 12.8V 100Ah All In One Ess Lifepo4 battery cell by ourselves and insist in using brand new and grade A cells only for safety and best battery pack performance.
Warning:Now lots of other competitors use recycled cells.Recycled cells can’t ensure the constancy of the cells and BMS effective management,which will put lots of safety issue and danger in household.
VTC Power Cell production process:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
VTC Power Battery Pack Assemble process:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
Discharge&Charge Curve:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
Package&Shipping:
Vtc100Al 1.2Kwh All In One ESS Lifepo4 battery
