Golf Cart Lithium Battery 51.2V(48V) 105Ah

Golf Cart Lithium Battery 51.2V(48V) 105Ah

  • Nominal Voltage: 48V (51.2V)
  • Nominal Capacity: 105 Ah
  • Stored Energy: 5.38 kWh
  • Dimension (L×W×H) In Inch: 20.51 x 14.25 x 9.65 inch
  • Dimension (L×W×H) In Millimeter: 521 × 362 × 245 mm
  • Weight lbs. (kg) No Counterweight: 99.21 lbs (45 kg)
  • Typical Mileage Per Full charge: 64–81 km (40–50 miles)
  • Cycle Life: >4,000 Times
  • IP Rating: IP67

Products Details

Safe LiFePO4 Chemistry

Stable, non-flammable lithium iron phosphate ensures safety in industrial environments.

Long Life & High Efficiency

Delivers 3,500–6,000 cycles and charges in 1.5–2.5 hours with 99% efficiency.

Smart Battery Management

Built-in BMS offers real-time monitoring and multi-level protection.

Flexible Voltage & Compatibility

Available in 24V, 36V, 48V, and 72V for all major golf cart types.

Space & Maintenance Saving

No battery room, no watering, no acid—zero maintenance required.

Clean & Durable Design

No gas emissions or spills, IP65-rated for harsh work environments.

Smart Golf Cart Lithium Battery

The smart battery pack (LiFePo4) has smart Advanced BMS patented technology. Multiple protections for voltage current, temperature, and short circuit provide customers with easy and comfortable power supply.

The smart battery is featured with function to monitor automobile battery through mobile app to achieve battenstatus real-time monitor at the users end. The remote diagnosis function is favorable to find out the cause of the problem.

The battery highlighted with high density, small size, light weight and reliable performance is ideal for low speed vehicles, electric utility vehicles and ground cleaning vehicles.

SPECS

Specification 38.4V 105Ah 51.2V 105Ah 51.2V 125Ah 76.8V 105Ah
Nominal Voltage 38.4V 51.2V 51.2V 76.8V
Rated Capacity 105Ah 105Ah 125Ah 105Ah
Continuous Discharge 105A 105A 125A 105A
Max. Discharge Current (30S) 315A 315A 375A 315A
Size (L×W×H) 521×362×245mm 521×362×245mm 612×392×245mm 671×362×245mm
Weight 37Kg 45Kg 54Kg 71Kg
Mileage 48–60KM 64–81KM 80–100KM 91–121KM
Charging Temp. 0–55℃ 0–55℃ 0–55℃ 0–55℃
Discharging Temp. -20–55℃ -20–55℃ -20–55℃ -20–55℃
Storage Temp. (1 year) 0–35℃ 0–35℃ 0–35℃ 0–35℃
Waterproof IP67 IP67 IP67 IP67

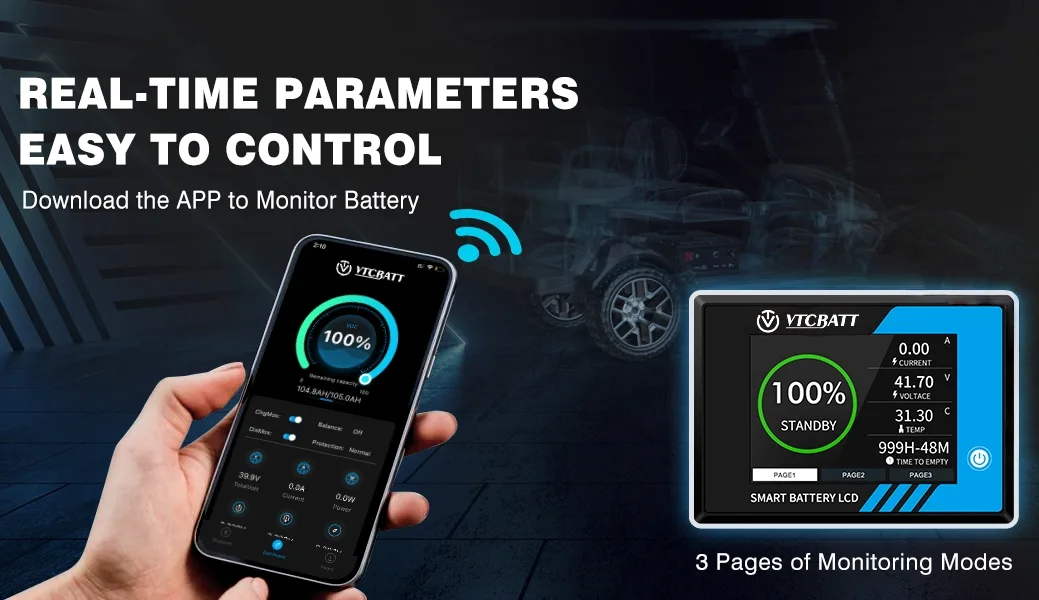

Smart Golf Cart Battery Monitor App

Easily monitor your golf cart’s lithium battery status in real-time. Track voltage, SOC, temperature, and more with Bluetooth connectivity, ensuring safety, performance, and extended battery life.

Display

With display and BT monitoring

GPS

Customisod GPS positioning function

Vent Valve

Highest safety for thermal runaway. overcharging,high temp,physical damage

Powerfull

BMS 150A,200A.250A.300A optionol

APP

Bottery stotus can be checked by phone in real time

Support parallel

Connected in parallel for lorger capacity

Waterproof

IP65 and with pressure relief valve

Efficient power

Stable quality

Durable

>4000 cycles

0 maintenance

Environmental protection

Safe and reliable

Smart Golf Cart Battery Monitor App

Easily monitor your golf cart’s lithium battery status in real-time. Track voltage, SOC, temperature, and more with Bluetooth connectivity, ensuring safety, performance, and extended battery life.

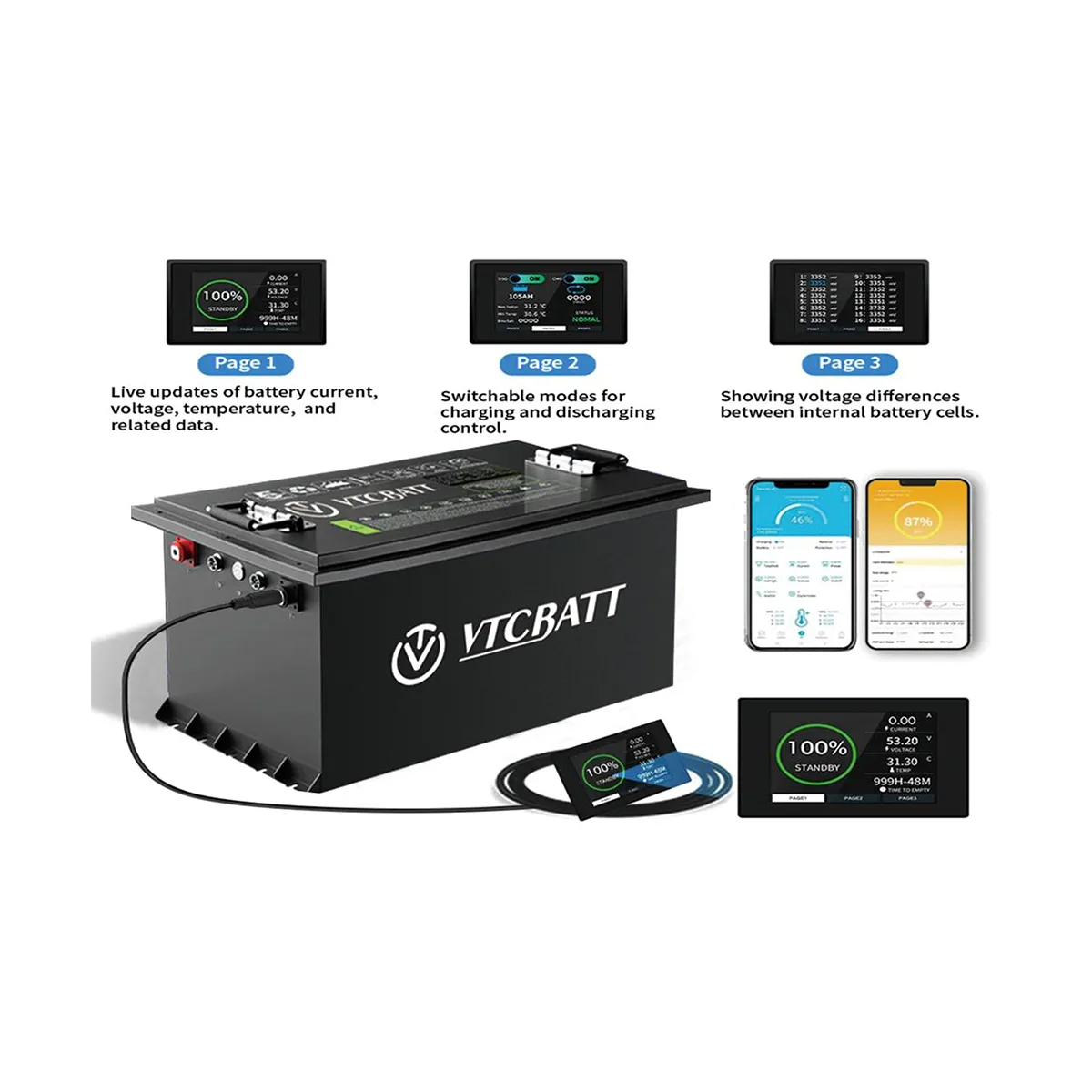

VTCBATT Golf cart battery User Manual Sheet-APP
VTCBATT Golf cart battery User Manual Sheet-Accessory 1

Install with total conversion kit

Easily upgrade your golf cart with our Total Conversion Kit—complete with wiring, connectors, and instructions for a fast, hassle-free installation.

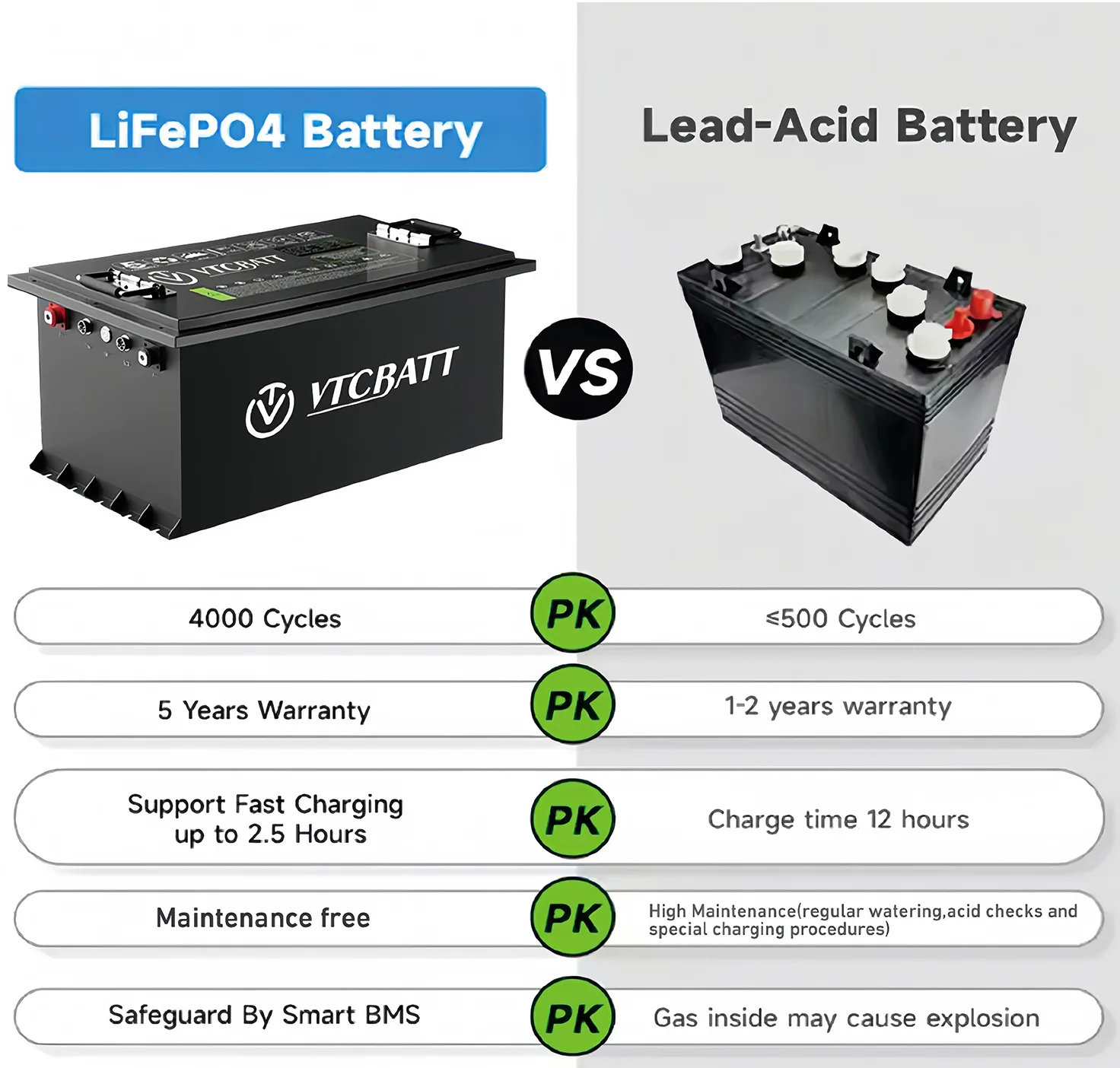

Much better than lead-acid batteries!

Experience longer driving range, quicker recharges, and lightweight power with zero maintenance—engineered for superior performance and reliability in every ride.

Lead To Lithium 1

Applications

VTCBATT offers connection accessories fully compatible with diverse golf carts and are accompanied by intuitive and straightforward instructions. Our battery ensures exceptional ease of use.

Suitable for Brands below:

Club Car, E-Z-GO, ICON EV,
Yamaha, EPIC, Honor LSV, Advanced EV, Kodiak, MOKE CARTS, Pilot Car, Polaris, Vivid EV, Bintelli, Others / OEM, ……

VTCBATT smart batteries are compatible with nearly all golf cart models, not limited to only the brands listed above. For specific questions, please contact our customer service to give you satisfactory service. Vehicles suitable for VTCBATT lithium batteries

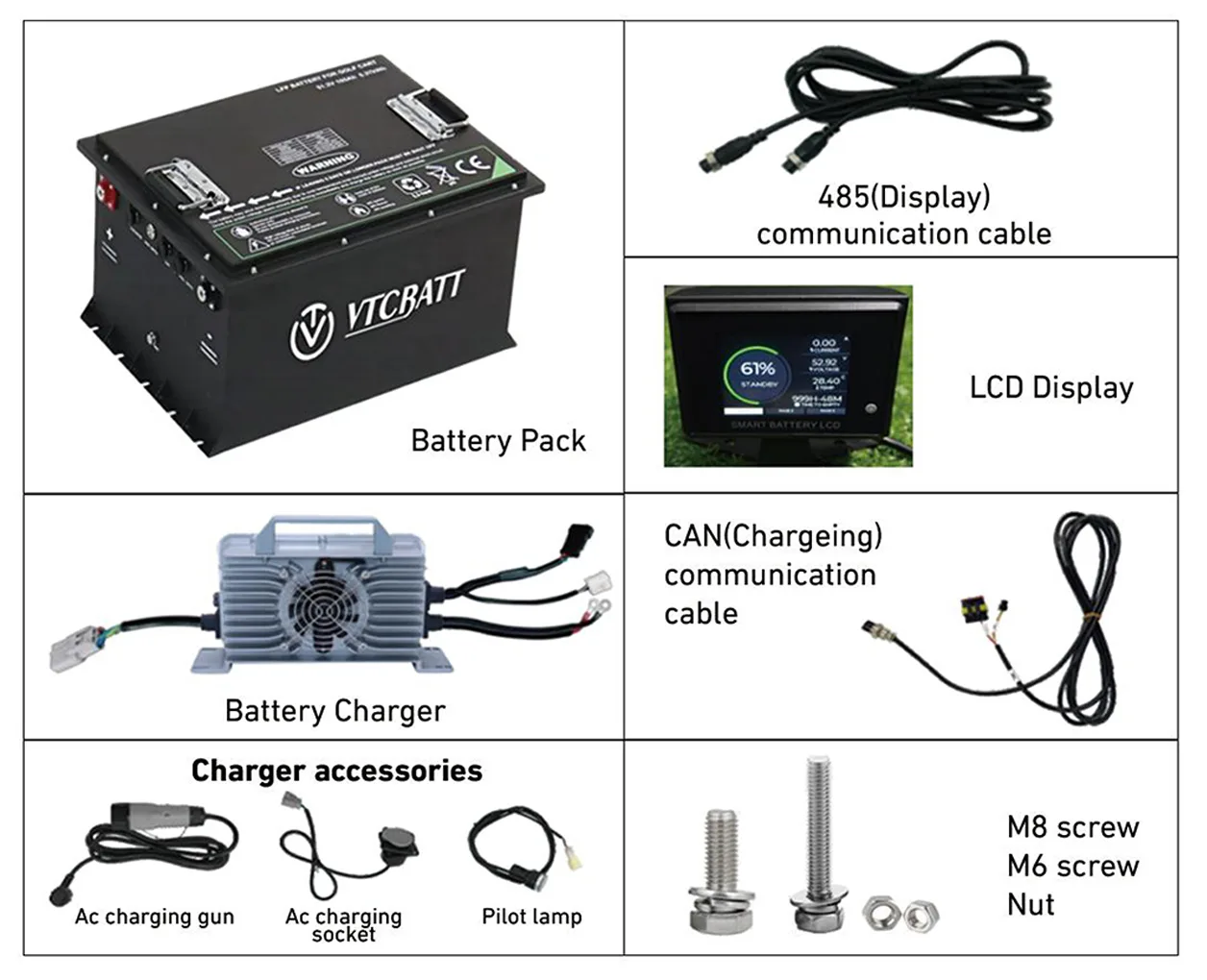

Battery installation ACCESSORIES

SOC monitor
SOC monitor

Displays real-time voltage, amps, and remaining charge percentage.

Display communication power wire
Display wire

Connect the battery to the battery dashboard and switch using this split cable.

Secure the bracket and screws
Secure bracket and screws

Secured to the chassis with screws through hooks connecting the Battery Body Buckle to the carts.

Waterproof Charger
Battery Charger

Charger with snap attachment, featuring reliability, safety, and short circuit protection.

CAN Cable
CAN Cable

Optional CAN cable for battery communication and BMS parameter adjustments

FAQs for Golf Cart 48V Battery

How to charge 48V lithium golf cart batteries properly?
Always use a charger specifically designed for 48V lithium (LiFePO₄) golf cart batteries. Lithium chargers deliver the correct voltage and charging profile to maximize performance and lifespan, and they should have an automatic shut-off function to prevent overcharging. For best results, plug in the charger after each day’s use rather than letting the battery fully drain. Charge in a cool, dry, and well-ventilated area, away from direct sunlight or extreme temperatures, to help maintain battery health and safety. Using VTCBATT’s matched lithium chargers ensures the right charging curve, faster charging times, and long-lasting, reliable power for your golf cart.
Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. If storing for long periods, keep the battery charged at around 50–70% to prevent overdischarge or overcharging.
To maximize the lifespan of your 48V lithium battery, store it in a cool, dry place away from direct sunlight and extreme temperatures. The ideal storage temperature is between 10°C and 30°C (50°F–86°F), with a relative humidity of 50–60%. Before long-term storage, charge the battery to about 50–70% to reduce stress on the cells. Avoid storing the battery completely full or completely empty for extended periods, as this can accelerate capacity loss. Disconnect it from the cart or any load during storage, and check the charge level every 3–6 months, topping up if it drops below 40%. Following these steps helps preserve performance and extends service life for years.
For optimal performance, check and clean your 48V lithium battery terminals every 3–6 months, or sooner if you spot dirt, dust, or any signs of corrosion. Even though lithium batteries require less maintenance than lead-acid, clean terminals ensure strong electrical contact and efficient power delivery. Use a dry cloth or soft brush, along with a non-corrosive cleaner if needed, to gently remove dirt or moisture. Avoid harsh abrasives or metal tools that could scratch the terminals. After cleaning, make sure the connections are tight but not over-tightened. Regular care like this helps maintain consistent performance and extends the life of your battery system.
The 48V 105Ah lithium golf cart battery delivers an impressive driving range of about 64 to 81 kilometers (40 to 50 miles) on a single full charge, depending on factors like terrain, passenger load, and driving style. That’s enough to comfortably play a full 18 holes of golf and still have plenty of energy left for a scenic cruise around the community—or even take a round trip to a nearby park, beach, or clubhouse without worrying about running out of power. Compared to typical lead-acid batteries of similar size, VTCBATT’s lithium option gives you a longer range, more consistent performance, and the confidence to go further between charges.
VTCBATT’s lithium battery is equipped with an advanced Battery Management System (BMS) that works around the clock to keep you and your cart safe. The BMS automatically monitors every cell, protecting against overcharge, over-discharge, short circuit, overcurrent, and temperature extremes—both hot and cold. It balances cells during charging to maintain peak performance and extends battery lifespan. These built-in protections mean you can enjoy powerful, reliable performance without worrying about battery damage or safety risks, whether you’re cruising the golf course, touring the community, or heading out for a longer adventure.
The key difference is in the number of cells inside. A 51.2V lithium battery is made up of 16 LiFePO₄ cells connected in series (each about 3.2V), while a standard 48V battery usually has 15 cells. That extra cell gives the 51.2V battery a slightly higher nominal voltage, which can translate to more available power, stronger acceleration, and improved performance under heavy loads or on hilly terrain. In many cases, carts designed for 48V systems can run on 51.2V lithium batteries with no problem—just with a bit more zip and efficiency.
