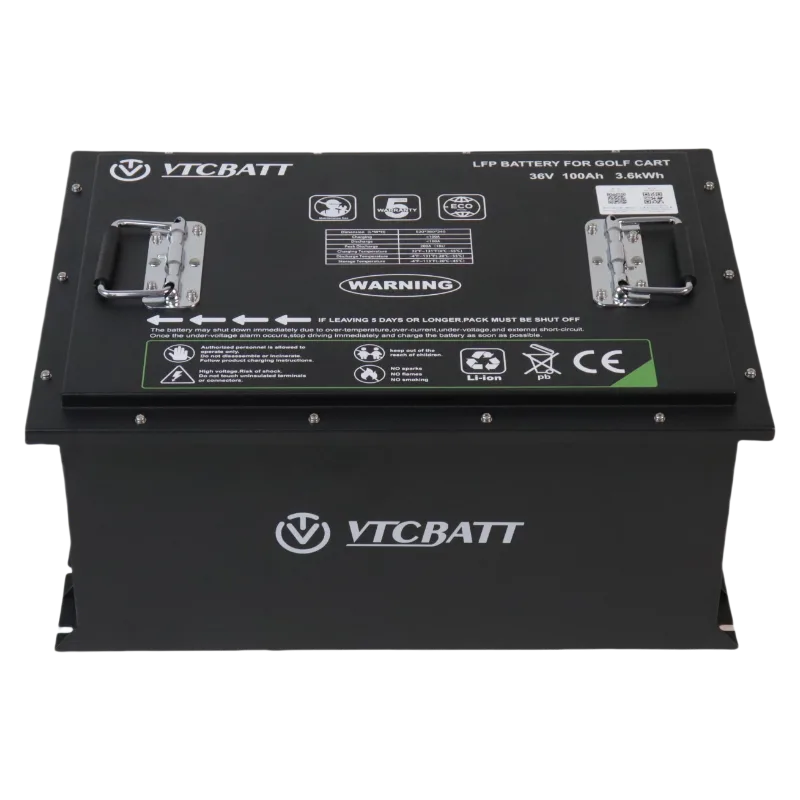

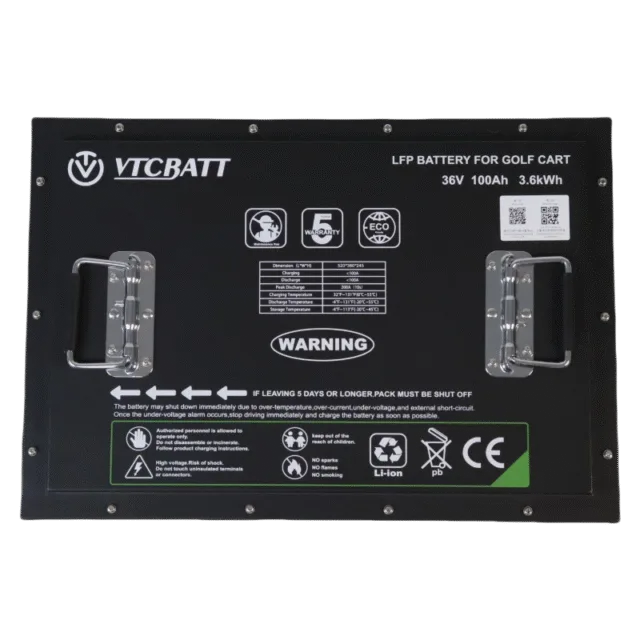

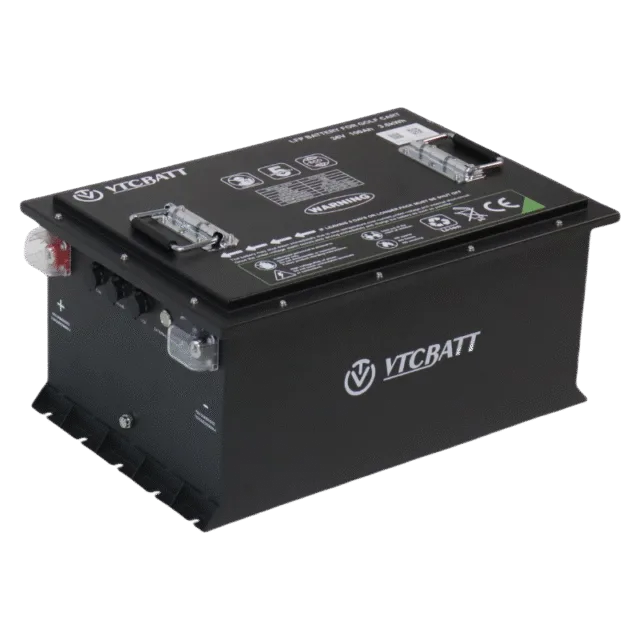

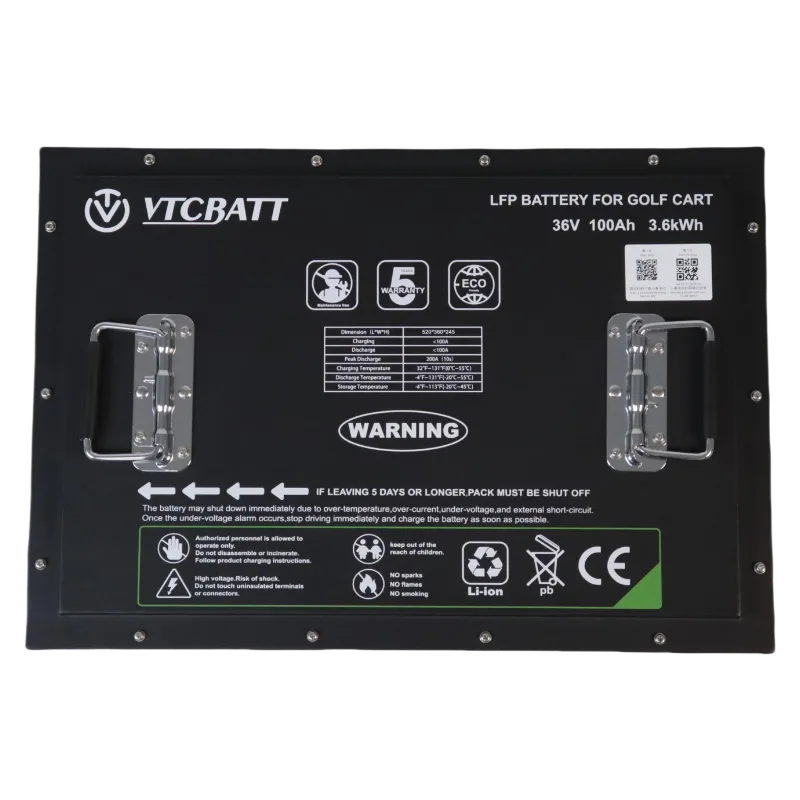

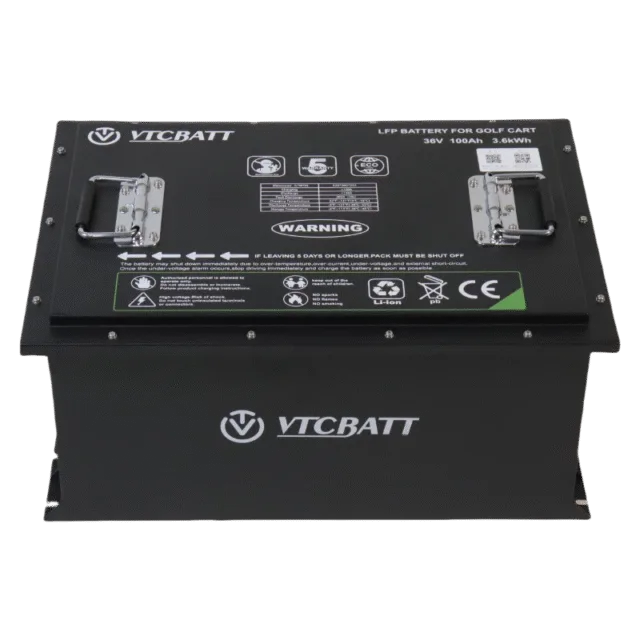

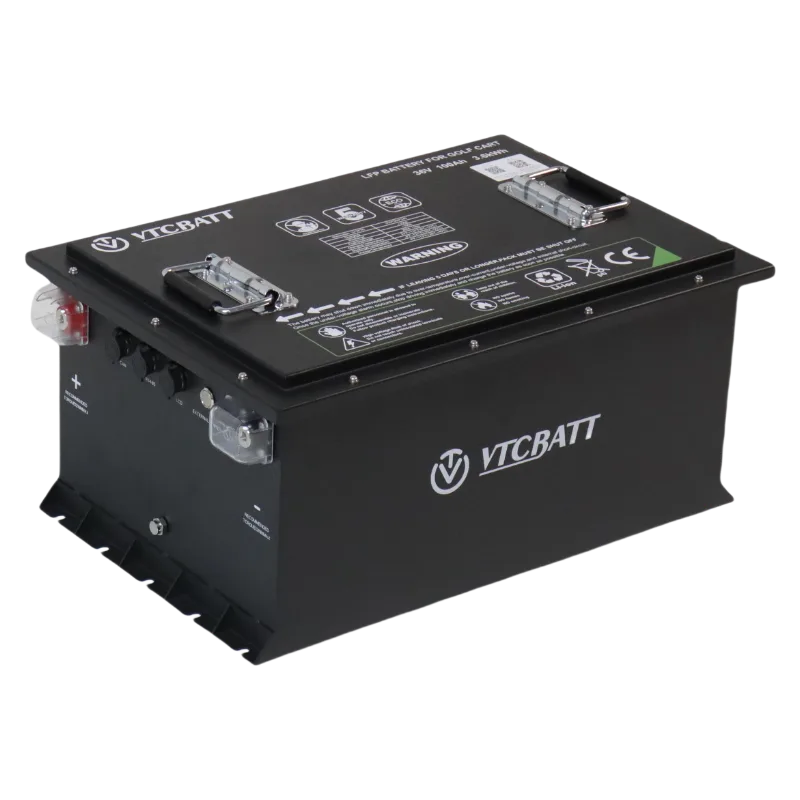

Golf Cart Lithium Battery 36V 100Ah

golf cart battery 36V 100AH (1)
golf cart battery 36V 100AH
golf cart battery 36V 100AH (1)
golf cart battery 36V 100AH (1)

Golf Cart Lithium Battery 36V 100Ah

  • Nominal Voltage: 36V (38.4V)
  • Nominal Capacity: 105 Ah
  • Stored Energy: 4.03 kWh
  • Dimension (L×W×H) In Inch: 20.51 x 14.25 x 9.65 inch
  • Dimension (L×W×H) In Millimeter: 521 × 362 × 245 mm
  • Weight lbs. (kg) No Counterweight: 81.57 lbs (37 kg)
  • Typical Mileage Per Full charge: 48–60 km (30–37 miles)
  • Cycle Life: ＞4,000 Times
  • IP Rating: IP67

  • Long Cycle Life
  • High Energy Density
  • Fast Charging
  • Zero maintenance
  • Compatible with 98% of golf cart models
ENQUIRY NOW
DATA SHEET

Products Details

Safe LiFePO4 Chemistry

Stable, non-flammable lithium iron phosphate ensures safety in industrial environments.

Long Life & High Efficiency

Delivers 3,500–6,000 cycles and charges in 1.5–2.5 hours with 99% efficiency.

Smart Battery Management

Built-in BMS offers real-time monitoring and multi-level protection.

Flexible Voltage & Compatibility

Available in 24V, 36V, 48V, and 72V for all major golf cart types.

Space & Maintenance Saving

No battery room, no watering, no acid—zero maintenance required.

Clean & Durable Design

No gas emissions or spills, IP65-rated for harsh work environments.

Smart Golf Cart Lithium Battery

The smart battery pack (LiFePo4) has smart Advanced BMS patented technology. Multiple protections for voltage current, temperature, and short circuit provide customers with easy and comfortable power supply.

The smart battery is featured with function to monitor automobile battery through mobile app to achieve battenstatus real-time monitor at the users end. The remote diagnosis function is favorable to find out the cause of the problem.

The battery highlighted with high density, small size, light weight and reliable performance is ideal for low speed vehicles, electric utility vehicles and ground cleaning vehicles.

SPECS

Specification 38.4V 105Ah 51.2V 105Ah 51.2V 125Ah 76.8V 105Ah
Nominal Voltage 38.4V 51.2V 51.2V 76.8V
Rated Capacity 105Ah 105Ah 125Ah 105Ah
Continuous Discharge 105A 105A 125A 105A
Max. Discharge Current (30S) 315A 315A 375A 315A
Size (L×W×H) 521×362×245mm 521×362×245mm 612×392×245mm 671×362×245mm
Weight 37Kg 45Kg 54Kg 71Kg
Mileage 48–60KM 64–81KM 80–100KM 91–121KM
Charging Temp. 0–55℃ 0–55℃ 0–55℃ 0–55℃
Discharging Temp. -20–55℃ -20–55℃ -20–55℃ -20–55℃
Storage Temp. (1 year) 0–35℃ 0–35℃ 0–35℃ 0–35℃
Waterproof IP67 IP67 IP67 IP67

Smart Golf Cart Battery Monitor App

Easily monitor your golf cart’s lithium battery status in real-time. Track voltage, SOC, temperature, and more with Bluetooth connectivity, ensuring safety, performance, and extended battery life.

  • Check battery charge level
  • Monitor real-time voltage
  • View temperature readings
  • Track battery health status
  • Receive low-battery alerts
  • Access charge/discharge history
  • Diagnose system faults
  • Remote diagnosis of battery failure

Display

With display and BT monitoring

GPS

Customisod GPS positioning function

Vent Valve

Highest safety for thermal runaway. overcharging,high temp,physical damage

Powerfull

BMS 150A,200A.250A.300A optionol

APP

Bottery stotus can be checked by phone in real time

Support parallel

Connected in parallel for lorger capacity

Waterproof

IP65 and with pressure relief valve

Efficient power

Stable quality

Durable

>4000 cycles

0 maintenance

Environmental protection

Safe and reliable

Smart Golf Cart Battery Monitor App

Easily monitor your golf cart’s lithium battery status in real-time. Track voltage, SOC, temperature, and more with Bluetooth connectivity, ensuring safety, performance, and extended battery life.

  • Check battery charge level
  • Monitor real-time voltage
  • View temperature readings
  • Track battery health status
  • Receive low-battery alerts
  • Access charge/discharge history
  • Diagnose system faults
  • Remote diagnosis of battery failure

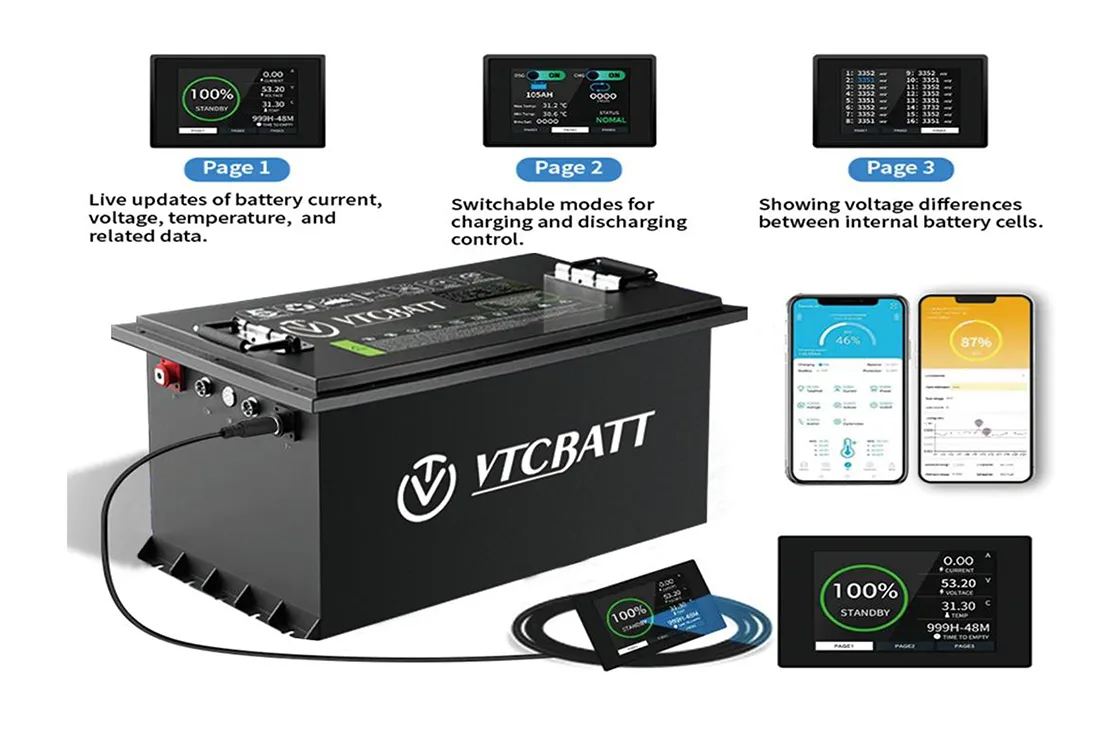

VTCBATT Golf cart battery User Manual Sheet-APP 1
VTCBATT Golf cart battery User Manual Sheet-Accessory 1

Install with total conversion kit

Easily upgrade your golf cart with our Total Conversion Kit—complete with wiring, connectors, and instructions for a fast, hassle-free installation.

  • Includes all necessary wiring and connectors
  • Plug-and-play design for easy installation
  • Compatible with most golf cart models
  • No special tools required
  • Step-by-step instructions included

Much better than lead-acid batteries!

Experience longer driving range, quicker recharges, and lightweight power with zero maintenance—engineered for superior performance and reliability in every ride.

  • Longer lifespan, reducing replacement frequency
  • Faster charging times for less downtime
  • Lightweight design improves vehicle efficiency
  • Maintenance-free, no need for watering or equalizing
  • Higher energy density for extended driving range
  • More environmentally friendly and safer chemistry
  • Consistent performance in a wide temperature range
Lead To Lithium 1

Applications

VTCBATT offers connection accessories fully compatible with diverse golf carts and are accompanied by intuitive and straightforward instructions. Our battery ensures exceptional ease of use.

Suitable for Brands below:

Club Car, E-Z-GO, ICON EV,
Yamaha, EPIC, Honor LSV, Advanced EV, Kodiak, MOKE CARTS, Pilot Car, Polaris, Vivid EV, Bintelli, Others / OEM, ……

VTCBATT smart batteries are compatible with nearly all golf cart models, not limited to only the brands listed above. For specific questions, please contact our customer service to give you satisfactory service. Vehicles suitable for VTCBATT lithium batteries

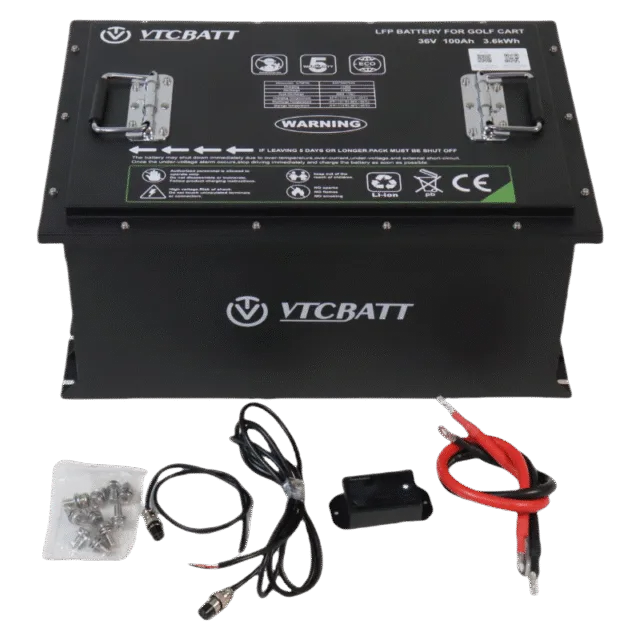

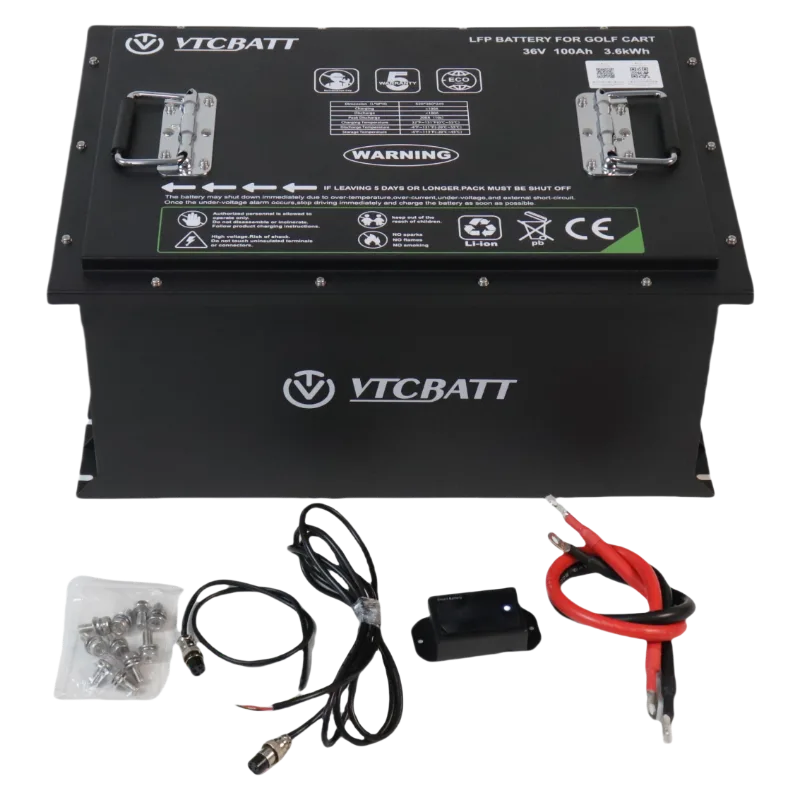

Battery installation ACCESSORIES

SOC monitor
SOC monitor

Displays real-time voltage, amps, and remaining charge percentage.

Display communication power wire
Display wire

Connect the battery to the battery dashboard and switch using this split cable.

Secure the bracket and screws
Secure bracket and screws

Secured to the chassis with screws through hooks connecting the Battery Body Buckle to the carts.

Waterproof Charger
Battery Charger

Charger with snap attachment, featuring reliability, safety, and short circuit protection.

CAN Cable
CAN Cable

Optional CAN cable for battery communication and BMS parameter adjustments

FAQs for 36V Golf Cart Batteries

How long does a 36V golf cart lithium battery last?
VTCBATT 36V LiFePO₄ batteries offer 8–10 years of service life, delivering 3,000–5,000 deep cycles with consistent performance, far outlasting traditional lead-acid options.
How long will a 36V golf cart battery last on a single charge? Runtime depends on capacity, terrain, and load. A 36V 105Ah lithium battery typically powers a golf cart for about 30–40 miles (48–64 km) on flat ground. Hilly areas, heavy passengers, or frequent starts/stops reduce range. Proper charging and avoiding full discharge help maintain consistent performance over time.
Depending on capacity and driving conditions, VTCBATT 36V lithium batteries deliver about 25–50 miles per charge. That’s enough to finish a full 18-hole round of golf and still have power to play half another round, or to take the family to the beach for a sunny afternoon and comfortably drive back home without worrying about running out of charge. Whether cruising around the community, exploring a resort, or making multiple trips across a golf course, you’ll enjoy a dependable and worry-free driving range.
Yes. VTCBATT lithium batteries are specifically designed as a seamless replacement solution for traditional lead-acid batteries. Our complete conversion kits include all the wiring, connectors, and a matched lithium charger, so upgrading is simple and worry-free. Beyond just convenience, switching to lithium is an eco-friendly choice—producing less waste and lasting years longer than lead-acid. You’ll also enjoy faster charging times, greater usable capacity for longer drives, and a much lighter battery that’s easier on your golf cart’s frame and performance. VTCBATT makes going from lead-acid to lithium not just possible, but better in every way.
Yes. Lithium batteries require a charger designed for their specific voltage and charging profile to ensure optimal performance and a long service life. Using a lead-acid charger can result in undercharging, overcharging, or reduced battery lifespan. That’s why VTCBATT provides perfectly matched lithium-compatible chargers with every battery or conversion kit. These chargers deliver the correct voltage, current, and charging stages for LiFePO₄ cells, helping your battery charge faster, run longer, and stay healthier for years to come.
It typically takes about 5 to 6 hours to fully charge VTCBATT’s 36V golf cart battery when using our recommended 20A lithium charger. Actual charging time may vary slightly depending on the charger’s amperage and how much energy is left in the battery before charging. Thanks to lithium’s higher charging efficiency, you can get a meaningful boost in range even from a quick top-up—perfect for grabbing lunch between rounds of golf and heading back out. Using our matched charger not only shortens charging time compared to lead-acid but also ensures safe operation, protects the battery, and helps it deliver reliable performance for years.
VTCBATT LiFePO₄ batteries use safe chemistry and a smart BMS, protecting against overcharge, over-discharge, overheating, and short circuits, ensuring dependable operation.
Built with premium EVE LiFePO₄ cells, VTCBATT batteries offer higher energy density, IP67 waterproof protection, and superior vibration resistance for golf carts and LSVs.
With a -20℃ to 55℃ discharge range and IP67 waterproofing, VTCBATT 36V batteries perform reliably in varied climates, from hot summers to cold winters.
The driving distance is determined by different conditions:
Ideal (flat terrain, light load) ~40–50 miles
Mixed/typical conditions ~30–40 miles
Conservative real-world estimate ~25–30 miles
With VTCBATT’s 38.4 V 105 Ah battery, expect around 30–50 miles on a full charge under favorable conditions, and closer to 25–30 miles in more demanding, real-world usage.
