Produkt Information

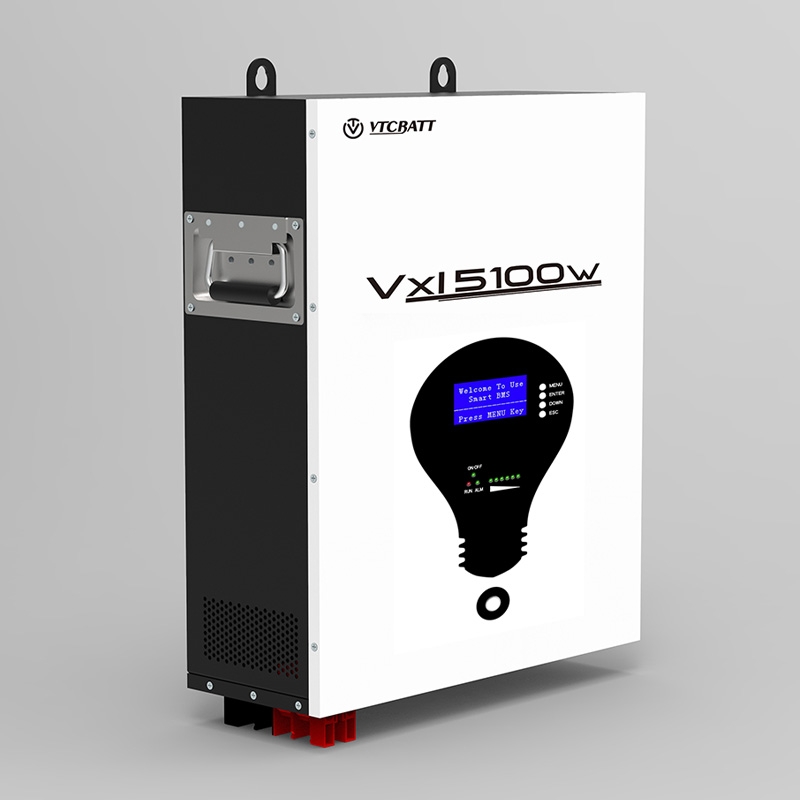

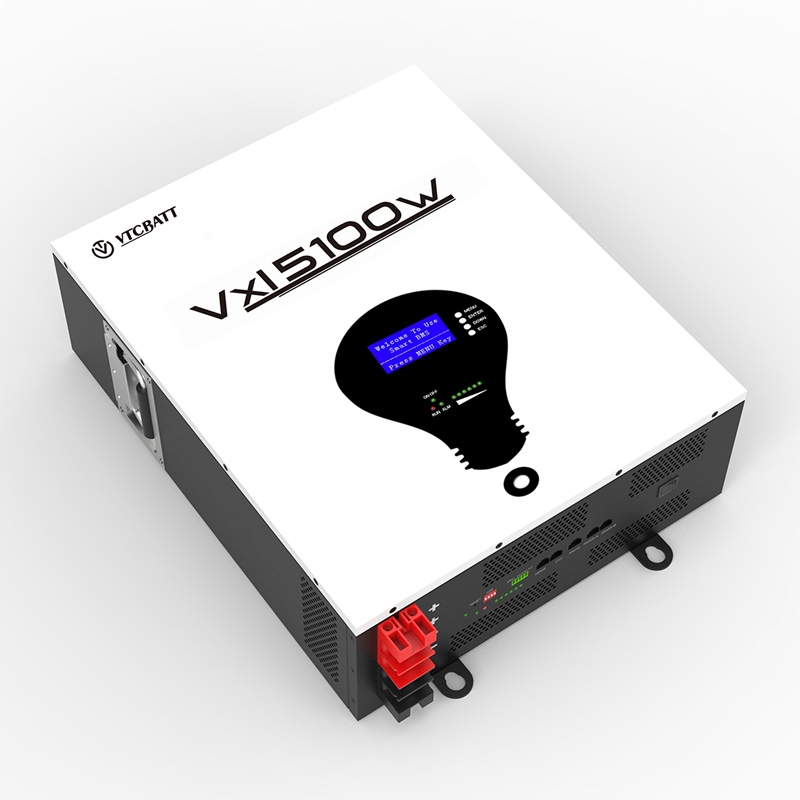

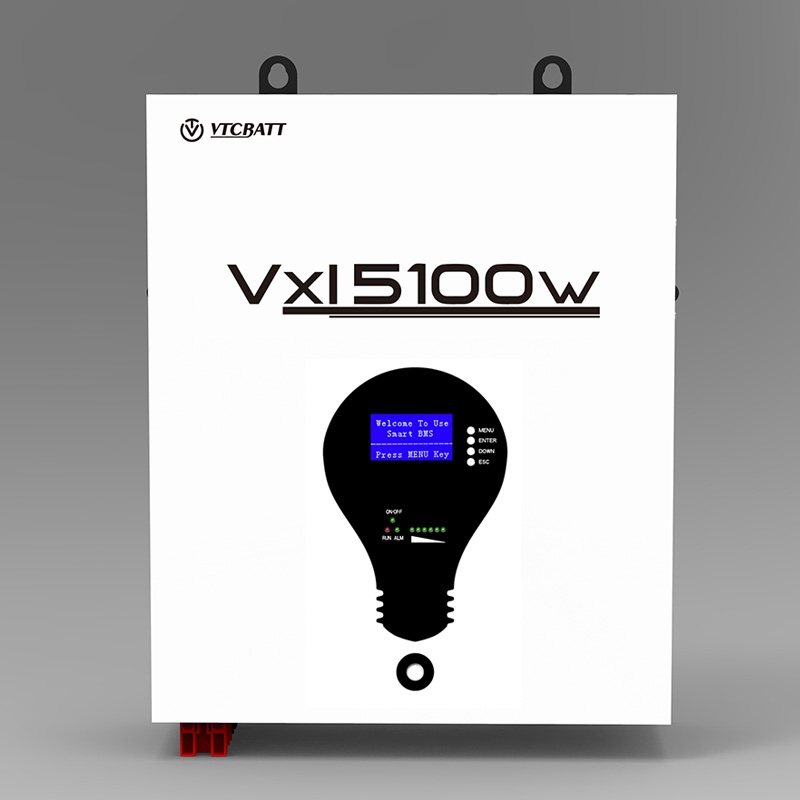

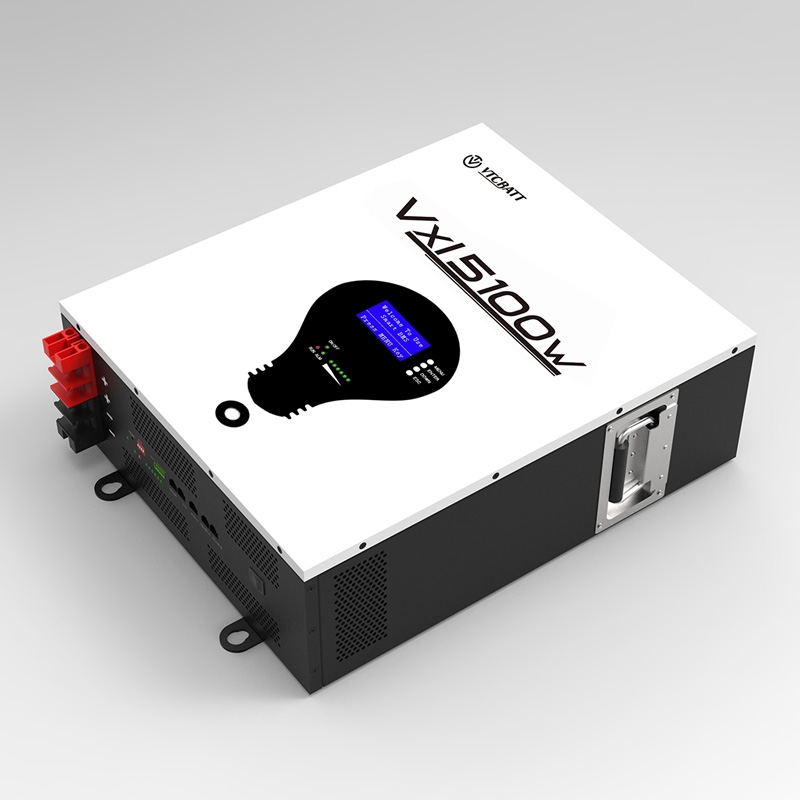

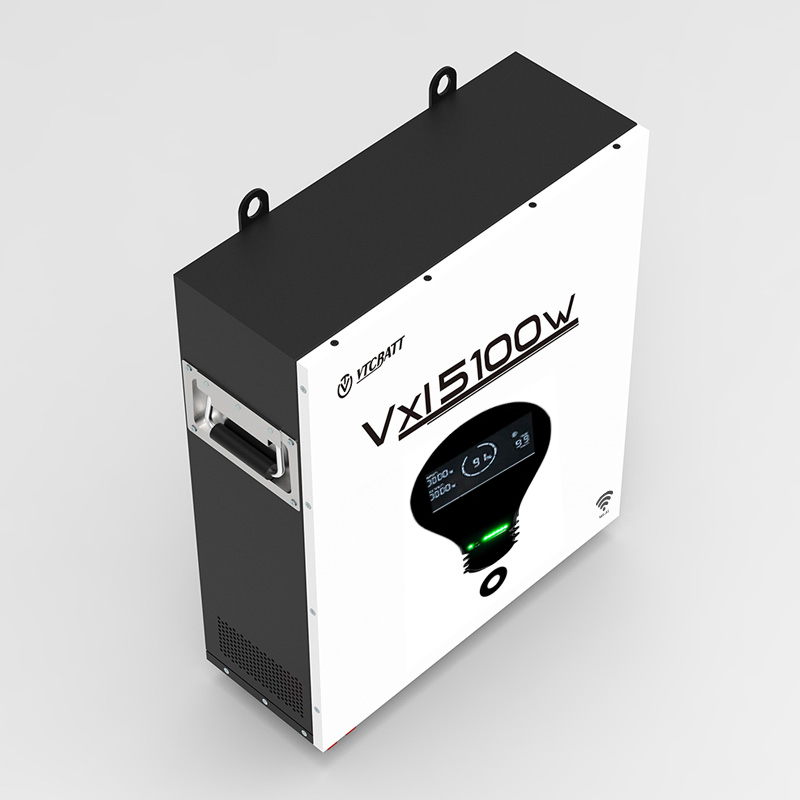

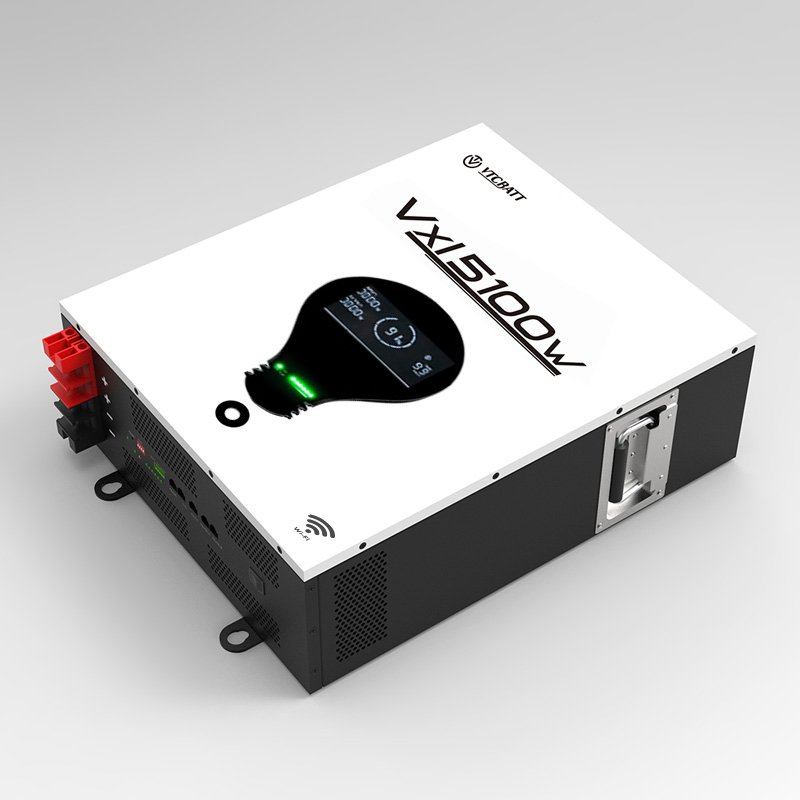

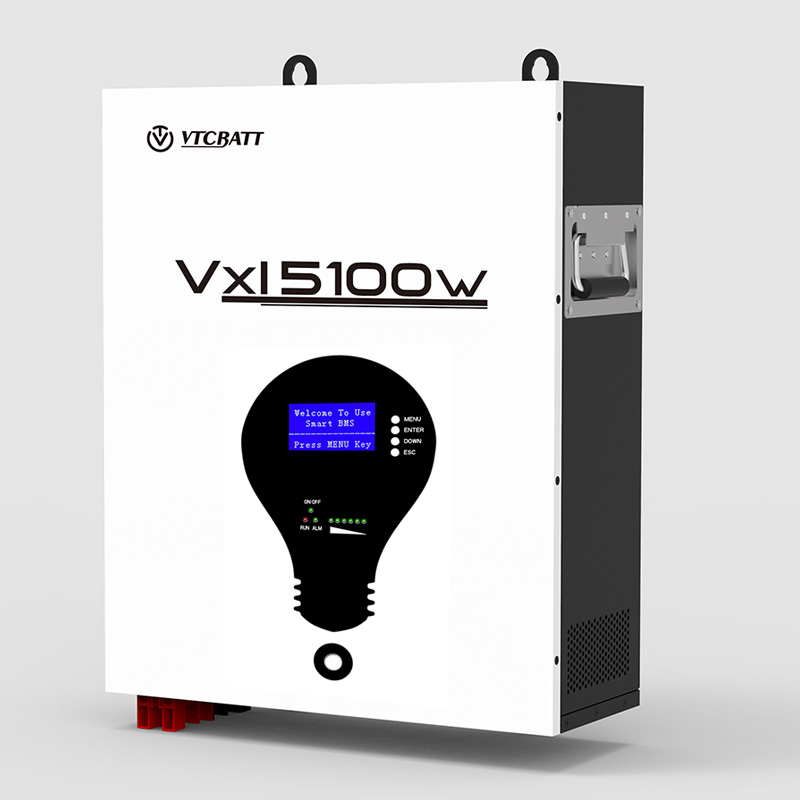

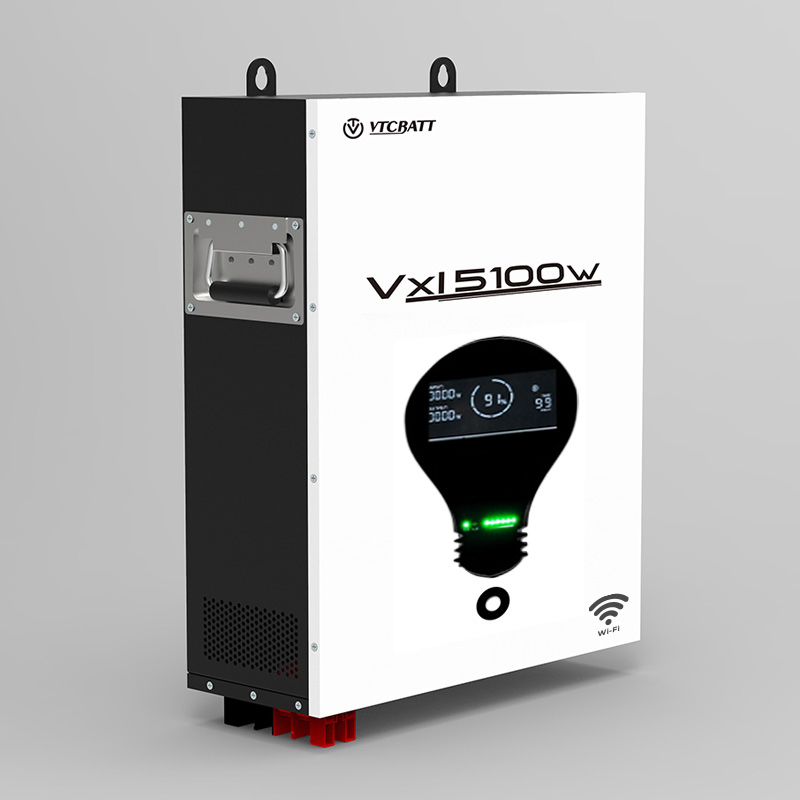

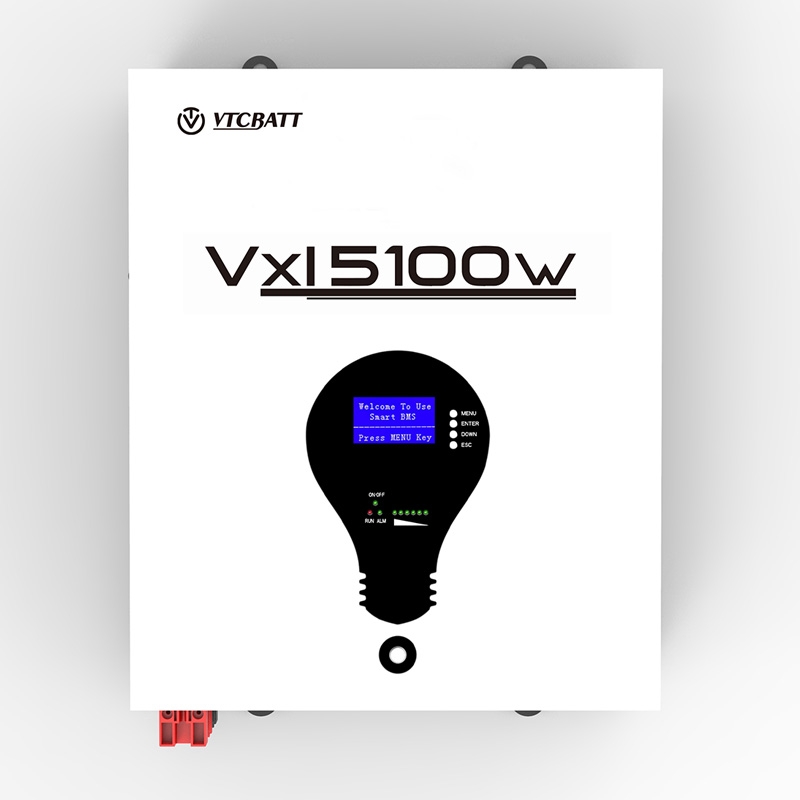

Vxl5100w 5.1kWh 51.2 V 100Ah Powerwall ESS Lifepo4 Akku
Vxl5100w Technische Details:
| Mode |
Vxl5100w |
| Battery Type |
Lifepo4 battery |
| Battery Combination |
16S1P |
| Case Numbers |
1 pc |
| Nominal Characteristic |
| Nominal Voltage |
51.2V |
| Battery Capacity |
100Ah |
| Nominal Energy Capacity |
5.1KWh |
| Peak Output Current |
100A |
| Round trip Efficiency |
96%-99% |
| Electrical Specifications |
| Voltage Range |
40-58.4V |
| Max. Charing Current |
100A |
| Max. Discharing Current |
100A |
| Mechanical Specifications |
| Net Weight |
48kg |

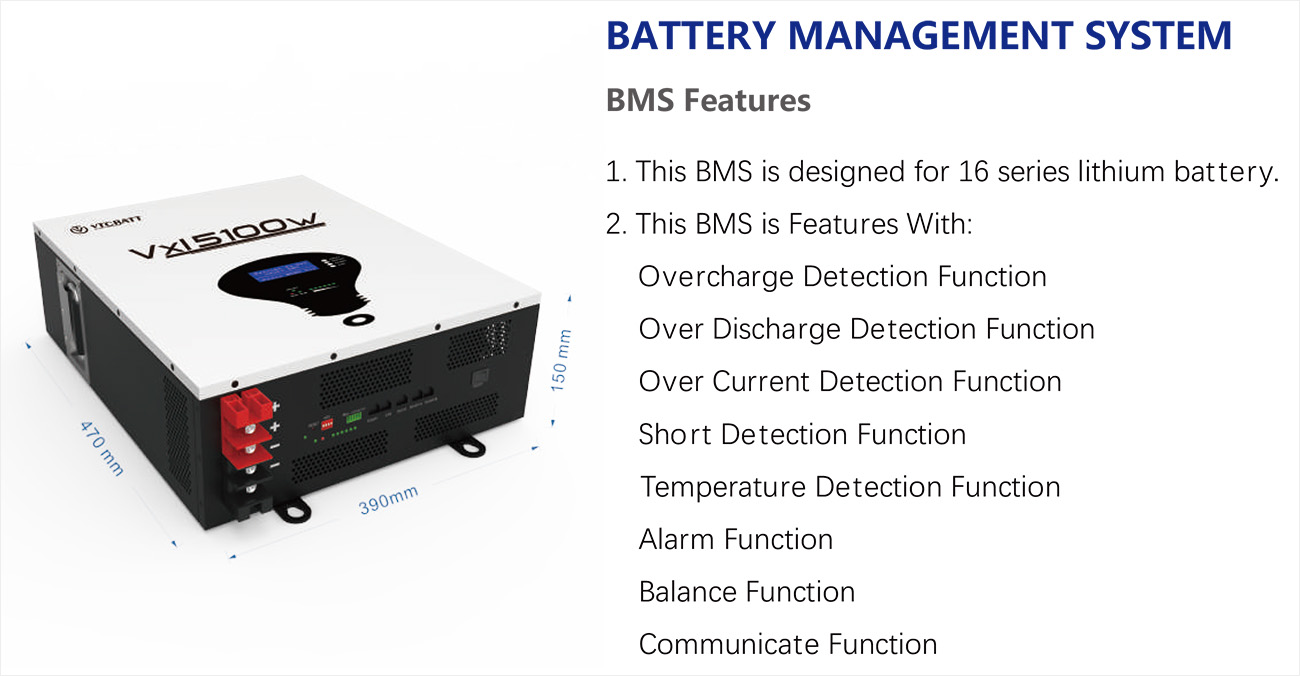

| Dimension |
150mmX390mmX470mm |
| Color |
White |
| Cooling |
Nature |
| Communication Specifications |
| Communication Port |
RS485/RS232/CAN |
| Operation Condition |
| Operation Temperature |
-20-65℃ |
| Recommended Temperature |
0-65℃ |
| Operation Humidity |
60％±25% |
| Storage Conditions |
0~40℃ |
| Compliances |
| Certification |
CE/IEC/UN38.3 |
| Standards |
EN61000-6-1:2007 EN61000-6-3:2007+A1:2011 |
| Inverter Type |
Goodwe,Victron Energy,Growatt,Pylontech, Voltronics,Deye,Inhenergy etc |
| Warranty |
| Warranty |
3 years |
| Life design |
10+ years |
| Installation type |
| Installation type |
Wall mounted |
| Cycle life |
| 0.2C at room temp |
6000+ times( 80% DOD) |
| 0.5C at room temp |
4000+ times( 80% DOD) |
| 1.0C at room temp |
2500+ times( 80% DOD) |
Manufacturing Technology:
Declaration:VTC Power produce the
Vxl5100w 5.12Kwh 51.2V 100Ah Powerwall Ess Lifepo4 battery cell by ourselves and insist in using brand new and grade A cells only for safety and best battery pack performance.
Warning:Now lots of other competitors use recycled cells.Recycled cells can’t ensure the constancy of the cells and BMS effective management,which will put lots of safety issue and danger in household.
VTC Power Cell production process:
VTC Power Battery Pack Assemble process:
Matching Inverter:

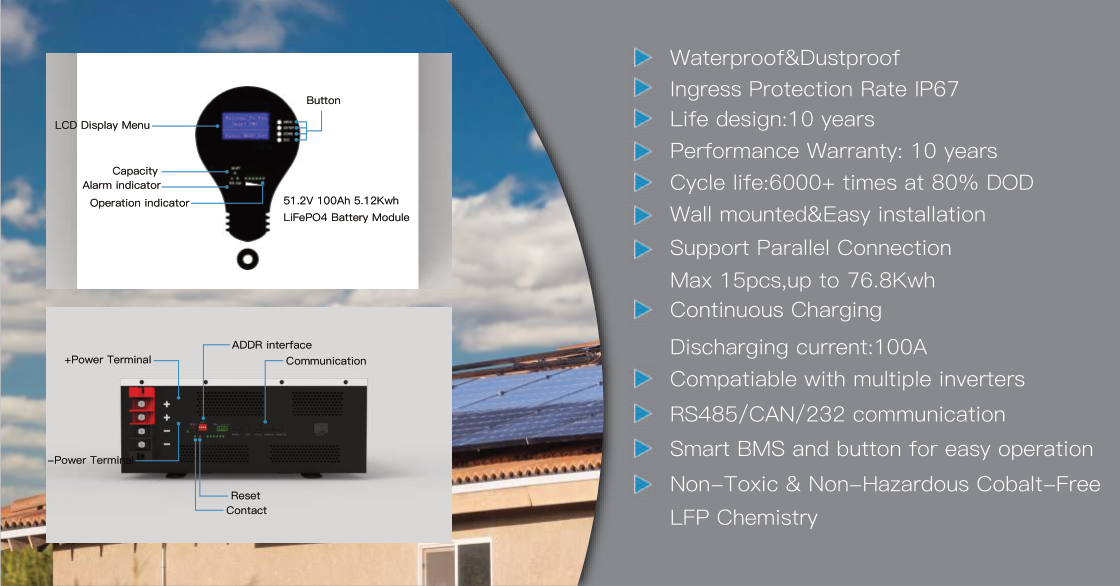

Vxl5100w 5.12Kwh 51.2V 100Ah Powerwall ESS lifepo4 battery Matching multiple brand inverter via RS485/CAN communication protocol.Its RS232 communication protocol can support PC data reading of battery SOH,capacity and battery charge&discharge status.
Vxl5100w RS232 communication protocol can support PC data reading of battery SOH,capacity and battery charge&discharge status.Vxl5100w has SOH 100%,full capacity 100000mAh,16S cell voltage difference 2mV only in each battery pack.
Project Cases:
6000+ families in Germany,Europe,South Africa,Australia choose the Vxl5100w 5.12Kwh 51.2V 100Ah Powerwall ESS Lifepo4 battery for their home power supply.
