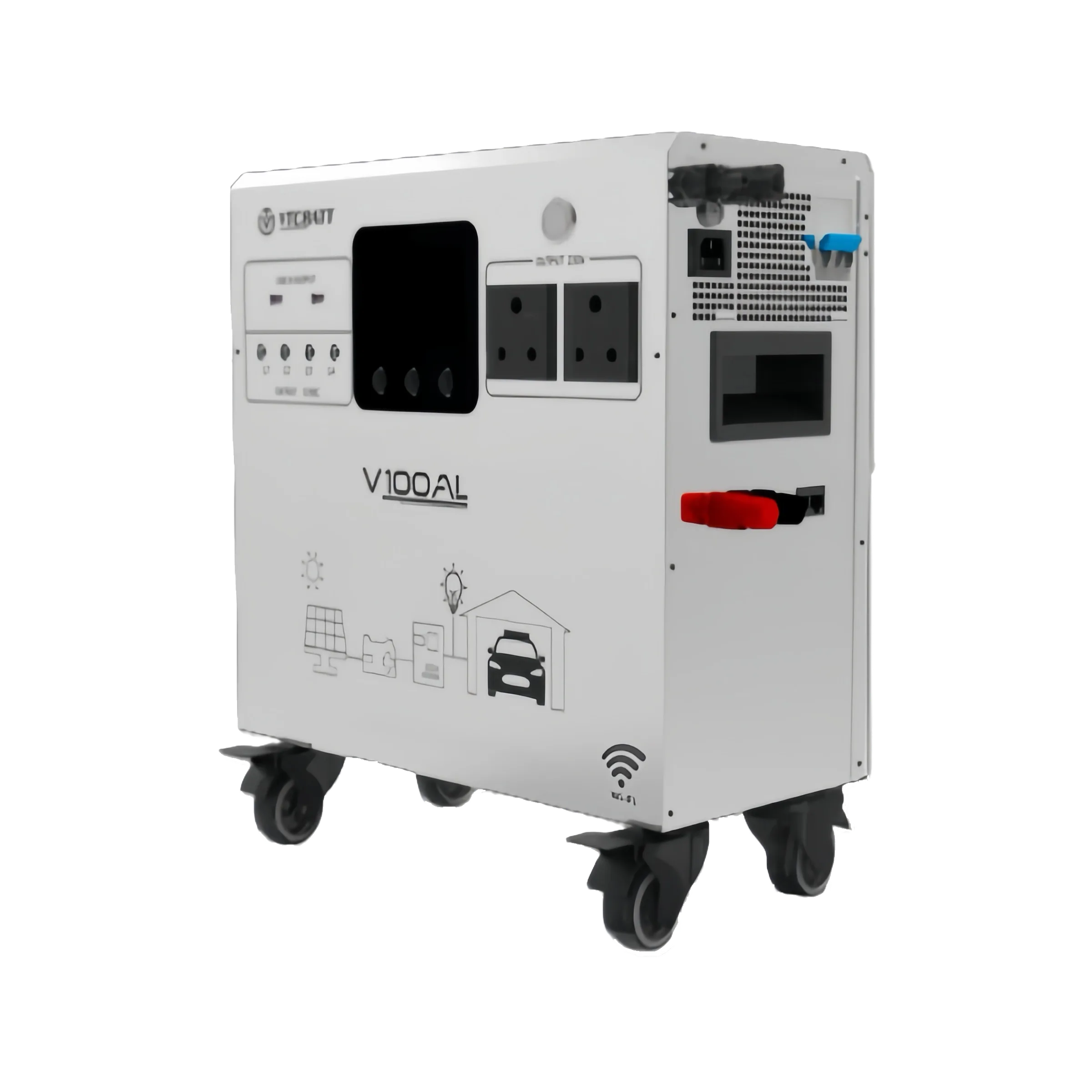

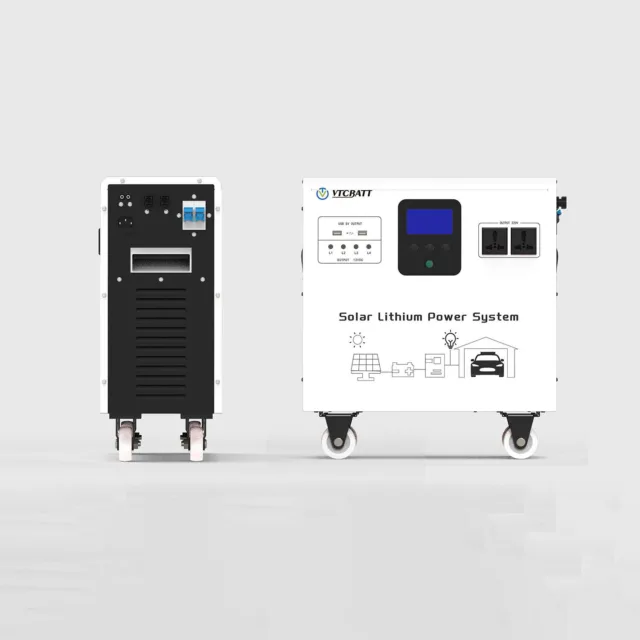

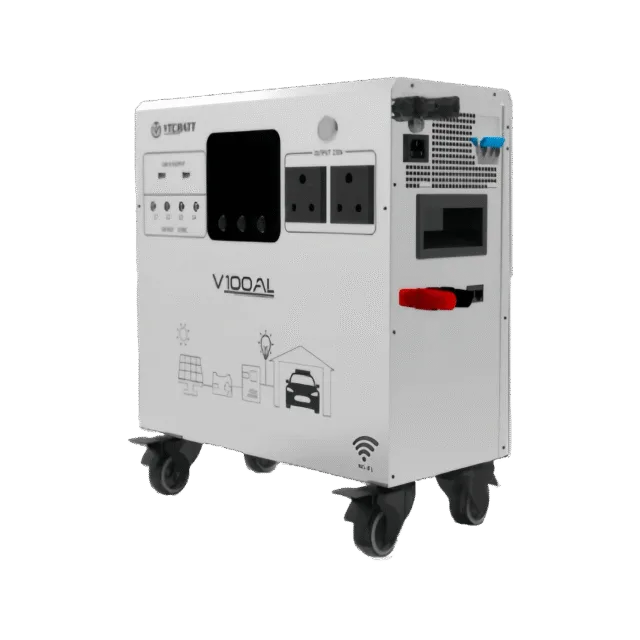

All in One ESS Battery – 1KW

all in one ess battery
ESS all in one battery
1KW All in One ESS (5)

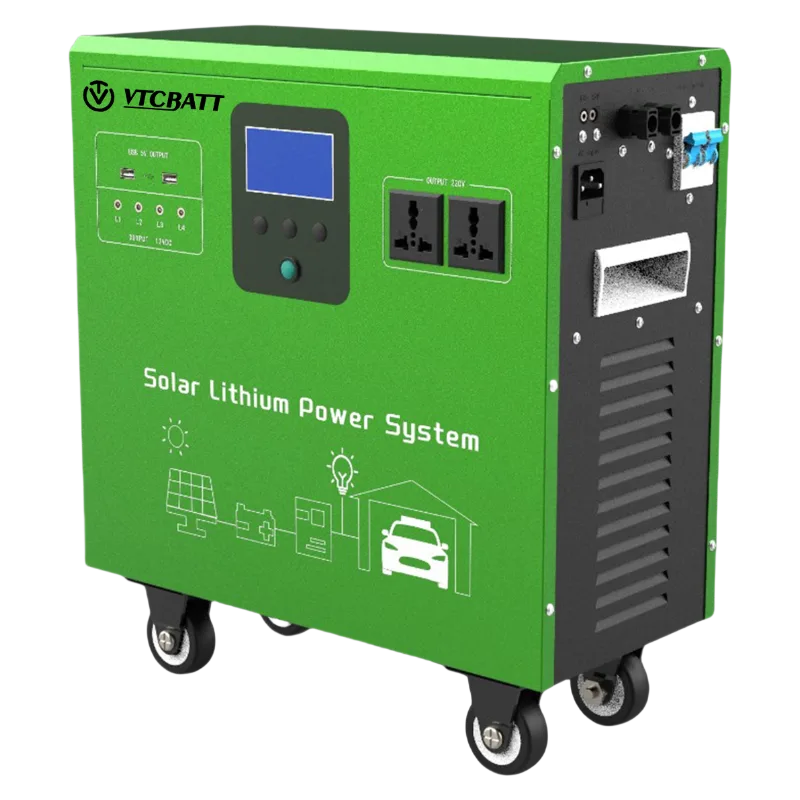

1KW All in One ESS (6)

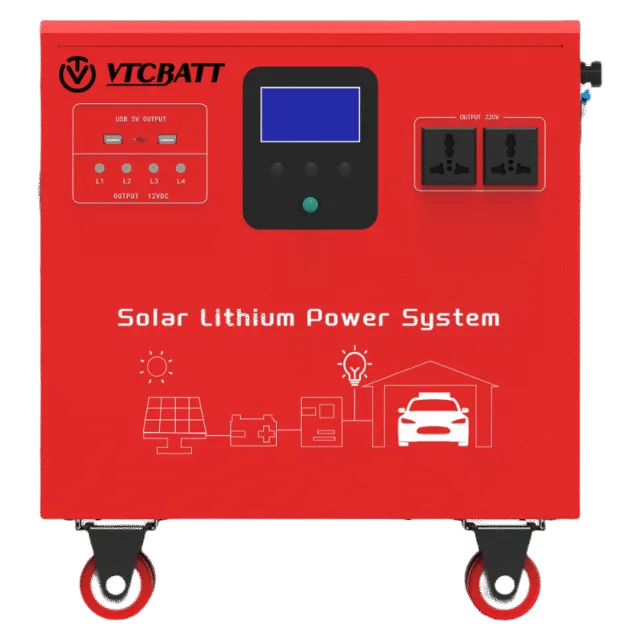

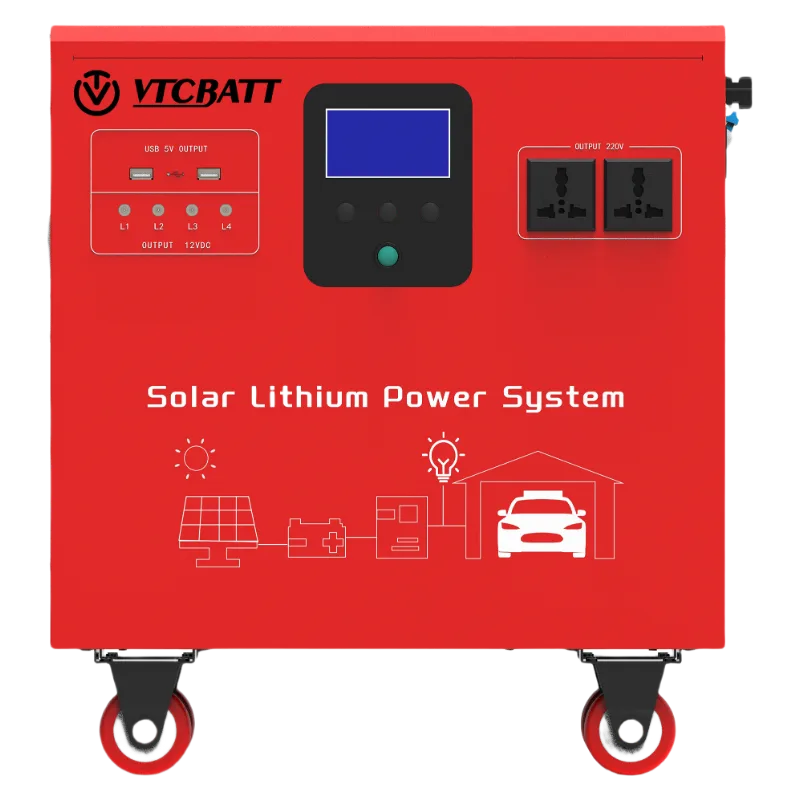

All in One ESS Battery – 1KW

  • Rated Capacity: 100Ah
  • Stored Energy: 1.2 kWh
  • Dimension (L×W×H) In Millimeter: 400x370x190 mm
  • Weight lbs. (kg) No Counterweight: 55.12 lbs (25 kg)
  • Cycle Life: More than 6000 cycles at 0.2C (80% DOD)
  • IP Rating: IP54
  • AC Charging Input: 110V-220V
  • Solar PV Charging Input voltage range:120-450v
  • AC Output Voltage: 220V-240V/USB 5V/12V DC.

  • Compact Integration – Combines battery, BMS, inverter, and cooling in a single unit.
  • High Safety – Uses LiFePO4 batteries with multiple protections (overcharge, discharge, short circuit).
  • Easy Installation – Pre-assembled system reduces setup time and complexity.
  • Long Cycle Life – Durable battery chemistry supports thousands of charge-discharge cycles.
  • Smart Monitoring – Remote monitoring and control via mobile app or web platform.
  • High Efficiency – Built-in inverter provides efficient DC to AC conversion.
  • Scalable Design – Can be expanded or connected in parallel for larger capacity.
  • Wide Operating Range – Supports various temperatures and environments.
ENQUIRY NOW
DATA SHEET

Products Details

Safe LiFePO4 Chemistry

Stable, non-flammable lithium iron phosphate ensures safety in industrial environments.

Broad Inverter Compatibility

Seamlessly integrates with major inverter brands for reliable solar energy storage.

APP Monitor

Remote OTA upgrades, WiFi and Bluetooth functionality, and app-based remote monitoring for easy system management.

Precise SOC Display

Accurate state‑of‑charge data shown after the first full battery charge.

10 Years Usage Life

Delivers 6,000+ cycles and charges in 0.2C with 99% efficiency.

Smart Battery Management

Built-in BMS offers real-time monitoring and multi-level protection.

Space & Maintenance Saving

Smaller battery size, no watering, no acid—zero maintenance required.

Clean & Durable Design

No gas emissions or spills, IP65-rated for harsh work environments.

All in One ESS Lithium Battery Overview

All-in-One Energy Storage Systems (ESS) combine battery cells, a battery management system (BMS), inverter, and cooling into one compact unit. This integration simplifies installation and saves space, making it ideal for homes and businesses. Typically using safe and durable LiFePO4 batteries, the system ensures long cycle life and reliable performance. The BMS protects against overcharge, discharge, and overheating, while the built-in inverter converts stored energy for immediate use. Many models support smart monitoring via apps, allowing users to track performance and receive alerts. All-in-One ESS provides an efficient, easy-to-use solution for energy storage and renewable integration.

  • Advanced internal design.
  • Life design:10 years
  • Warranty: 5 years
  • Cycle life:6000+ times at 80% DOD
  • Plug and Play for easy operation
  • Continuous Charging/ Discharging current:100A
  • DC Output 5V, 12V, 24V; AC Output 110-240V
  • RS485/CAN/232 communication
  • Built-In Safety – Smart BMS with Breaker On/Off Switch for Shipping & Installation
  • Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

All in One ESS Battery System Specification

Item Name Specification Remark
Display System Display Screen Type liquid crystal display touch screen
Background light Full Colour
LiFePO4 Battery Pack Battery Type LiFePO4
Rated Energy 1200WH
Rated Capacity 100Ah
Rated Voltage 12.8V
Cycle Life >6000 times
BMS Discharge characteristic Continuous Current 100A
Over current protection 120A
Charge characteristic Charge Voltage 14.6V
Charge Current ≤20A
Over-charge Protection Single cell Cut-off voltage 3.65V
Single cell recovery Voltage 3.58V
Over-discharge Protection Single cell cut-off voltage 2.8V
Single cell recovery voltage 3.0V
Over-current Protection Overcurrent detection current 130A
Overcurrent protection release condition Release load
Short-Circuit Protection Short circuit protection Enable
Short circuit protection release condition Release load
Self-consumption current Operating mode power consumption ≤50mA
Idle mode power consumption ≤200uA
AC Charging Input Rated Input Voltage (V) 110V-220V/50/60HZ
AC maximum input voltage AC300V
AC maximum input current 20A
Over-current protection Yes
Solar PV Charging Input Interface type Wire pressure terminal
Rated Input voltage (V) DC380V
Input voltage range(V) 120-450V
Input power 1000W
Positive and negative pole insertion Yes
Reverse protection Yes
Over-current protection Yes
AC Output Output wave form Pure sine wave
(Vac)Output voltage 1 220V-240V
Output port voltage 2 USB5V
Output port voltage 3 12V DC
(Hz)Output frequency 50HZ/60HZ
Output power 1000W
No-load power consumption 100W
Inversion efficiency ≥90%
Under-voltage output protection Yes
Over-voltage output protection Yes
Over-load output protection Yes
Short-circuit Output protection Yes
Released condition of short-circuit protection Disconnect the load, Charge to activate
Communication mode Wireless connections WIFI
Environment Environment Temperature 0°C-50°C
Charge Temperature (°C) 0°C-45°C
Humidity(%) 0-90%
Dimension Cooling Forced air-cooling
L/W/H(MM) 400-370-190
Weight Net Weight 25KG

VTCBATT Upgraded Smart Home ESS System

An advanced home energy storage system with WiFi, Bluetooth, App, and visual cloud monitoring for seamless remote management, real-time alarms, and easy software upgrades.

  • Wall-mounted design for fast, easy installation
  • Automatic detection of parallel battery, no manual setup
  • Remote mobile monitoring via WiFi and Bluetooth
  • Visual cloud platform for live battery management
  • Real-time battery and cell status monitoring
  • Remote BMS settings and calibration control
  • Over-the-air software and firmware upgrades
  • Instant alarms and remote maintenance notifications

ESS Lithium Ion Battery

Power your home with renewable energy

Smart All In One ESS Battery Monitor App

Real-time monitoring of battery voltage, current, and temperature. Enables remote diagnostics and alerts to ensure safe, stable operation and improve maintenance efficiency.

  • Real-time battery voltage, current, and temperature monitoring
  • Remote fault diagnosis and alert notifications
  • Historical data logging and trend analysis
  • Multi-device and multi-user management
  • Supports CAN, RS485, and Modbus communication protocols
  • Intelligent battery status evaluation and lifespan prediction
  • User role management and security
  • Remote firmware updates and maintenance support

Much better than lead-acid batteries!

Experience longer driving range, quicker recharges, and lightweight power with zero maintenance—engineered for superior performance and reliability in every ride.

  • Longer lifespan, reducing replacement frequency
  • Faster charging times for less downtime
  • Lightweight design improves vehicle efficiency
  • Maintenance-free, no need for watering or equalizing
  • Higher energy density for extended driving range
  • More environmentally friendly and safer chemistry
  • Consistent performance in a wide temperature range
Compatible with the mainstream inverters

SMA, Victron Energy, GoodWe, Solis Inverters, Schneider Electric, Deye, Growatt, IMEON Energy, Studer, Selectronic, Voltronic Power, Sofar Solar, Sermatec, Zucchetti Centro Sistemi, Redback Technologies, Alpha ESS, Sungrow, LUX PowerTek, Morningstar, Delios, Ingeteam, MLT Power, Steca (A KATEK Brand), SAJ, SolarMax, Axioma Energy, Phocos, Western Co., Effekta, Kehua Tech, INVT, TBB, MUST, Moixa, Megarevo, AiSWEI, FSP, LIVOLTEK, SenerQy, SolaX Power, Opti-Solar Inverter Power, Sorotec, GMDE

VTCBATT ESS instruction: Tested, Proven, Trusted

welcome more partners to learn and collaborate with us.

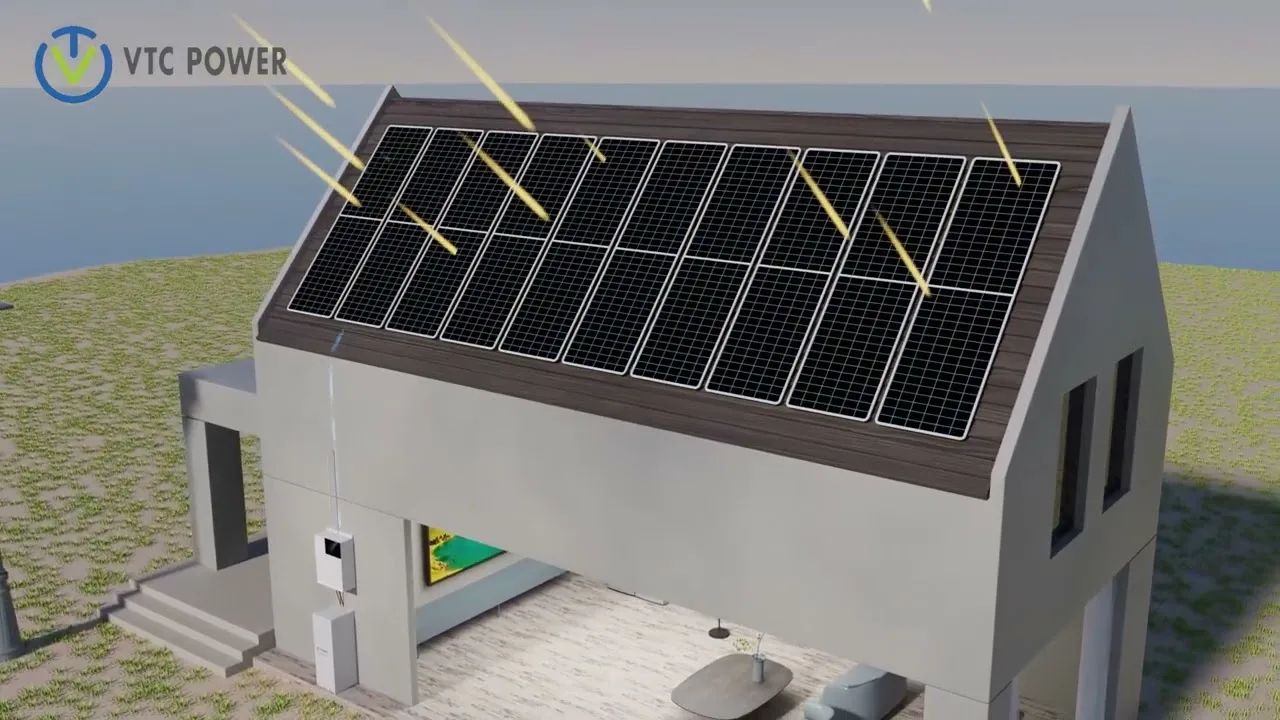

Rack-Mounted ESS Home Application Demo

VTCBATT Rack-Mounted ESS Feature and Application Instruction

VTCBATT Bluetooth,WIFI and EMS App to monitor all the battery status

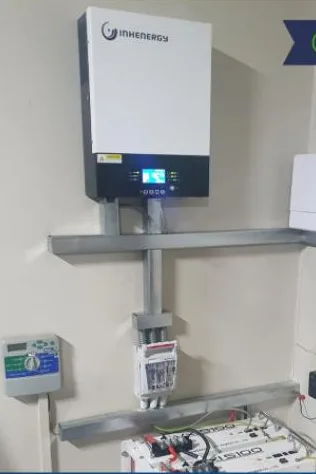

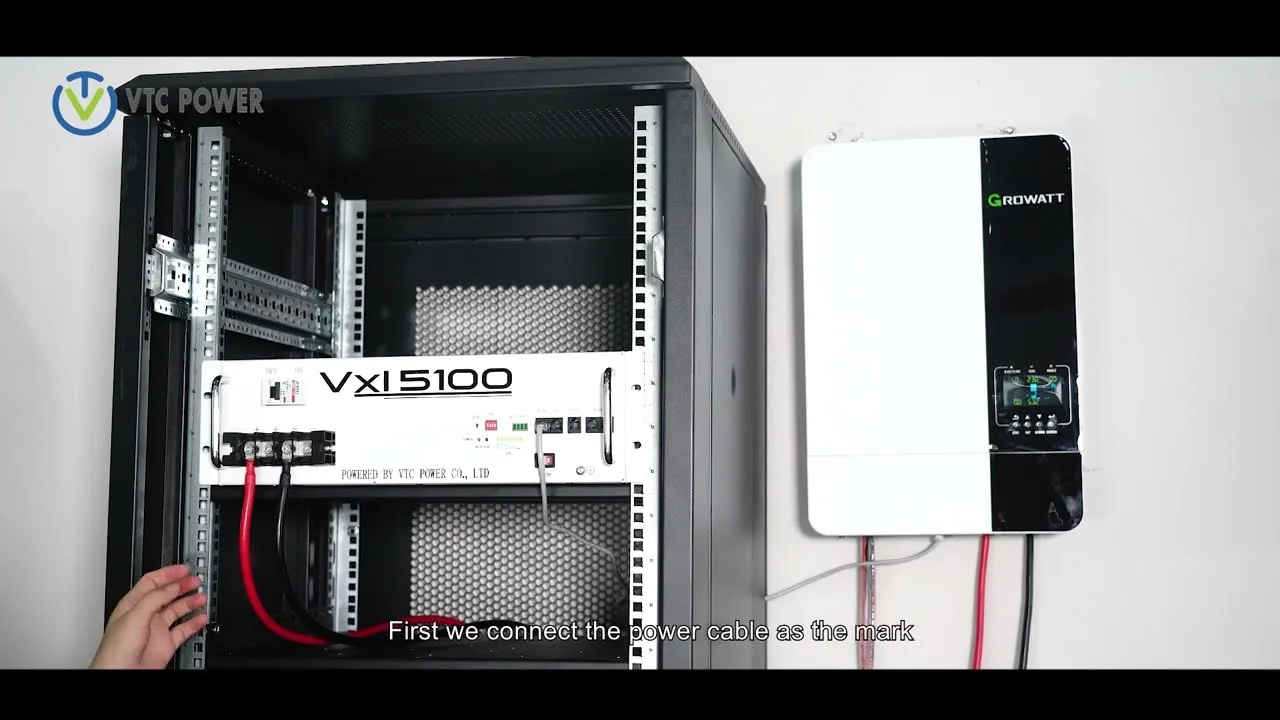

5KWh Rackmount ESS battery communicates with Growatt inverter

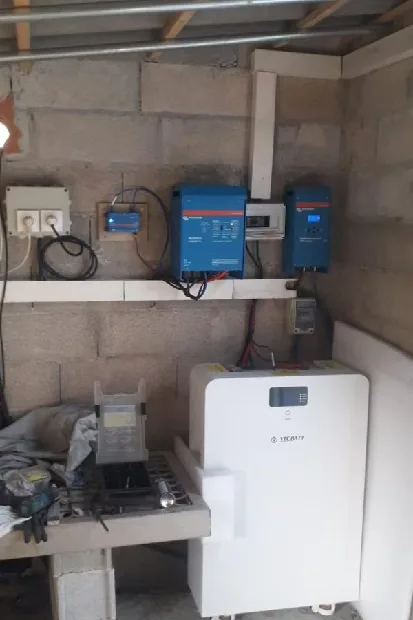

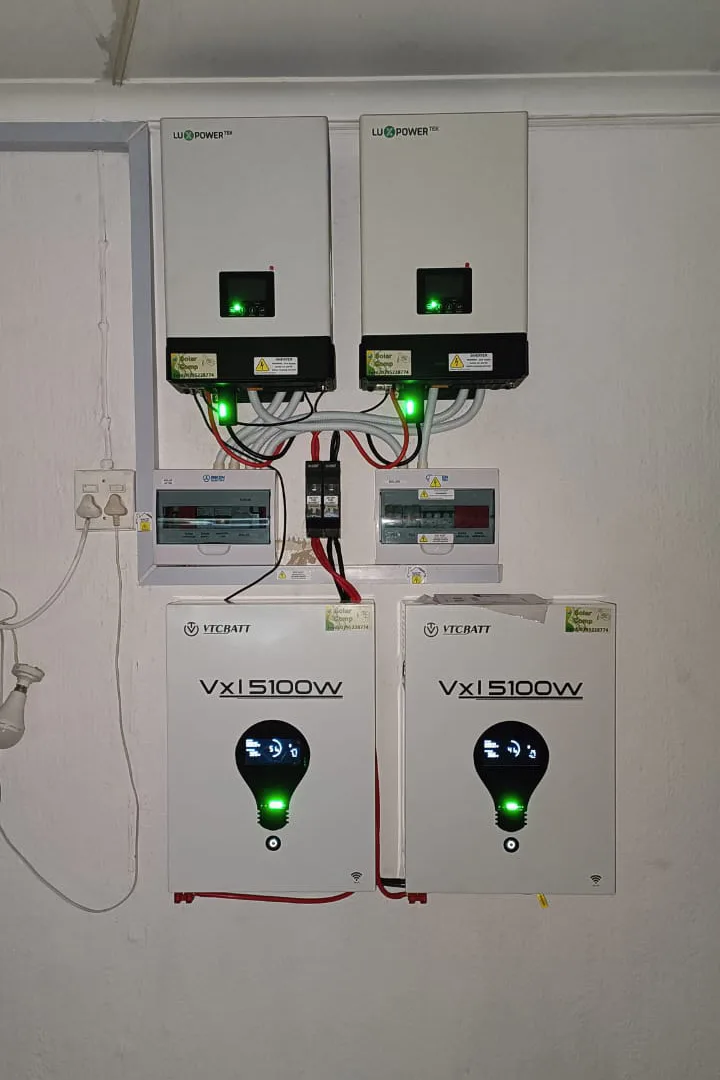

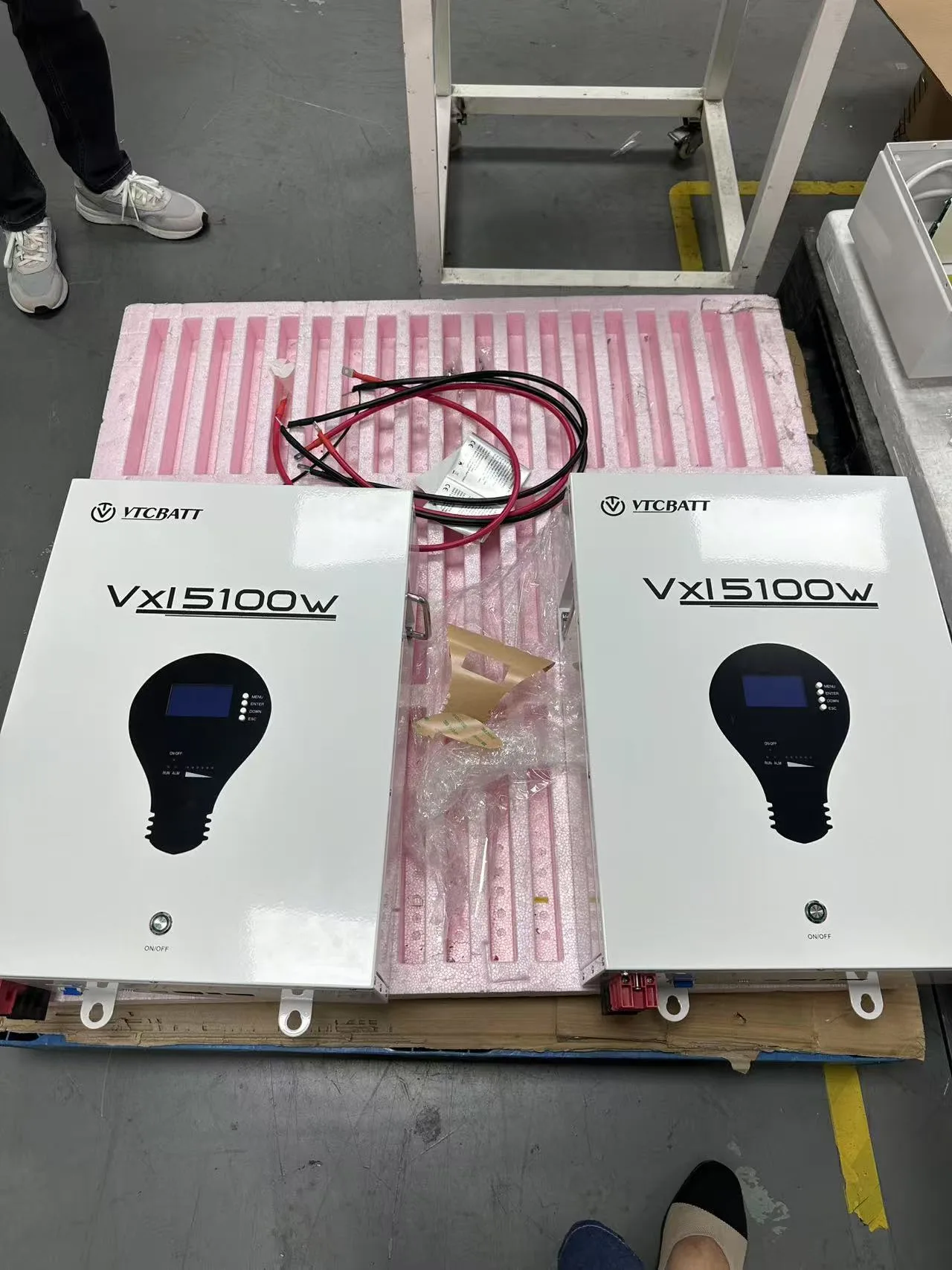

Powered by Trust, Proven by Action

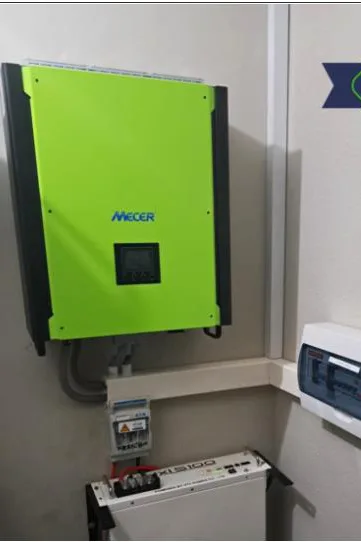

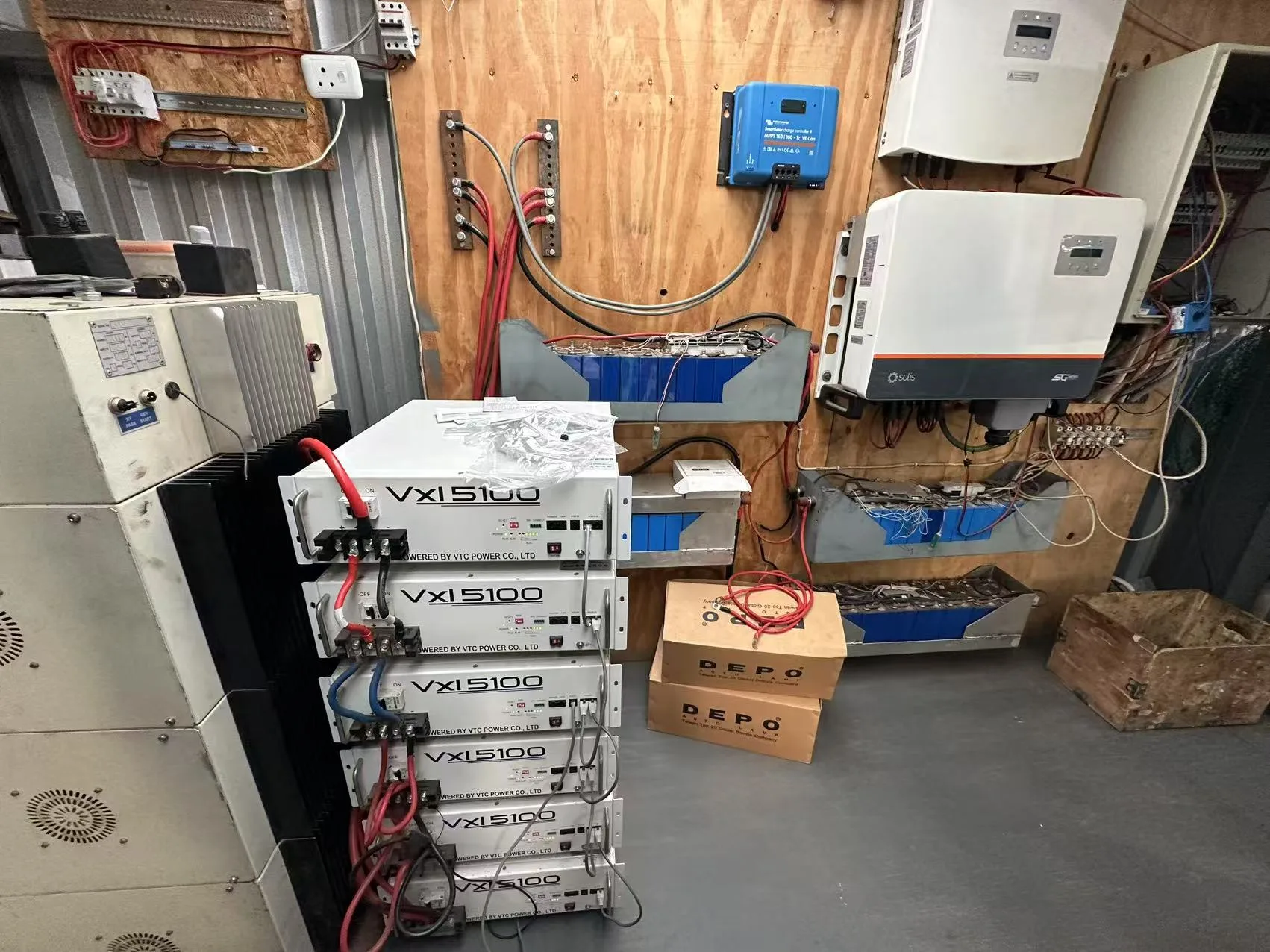

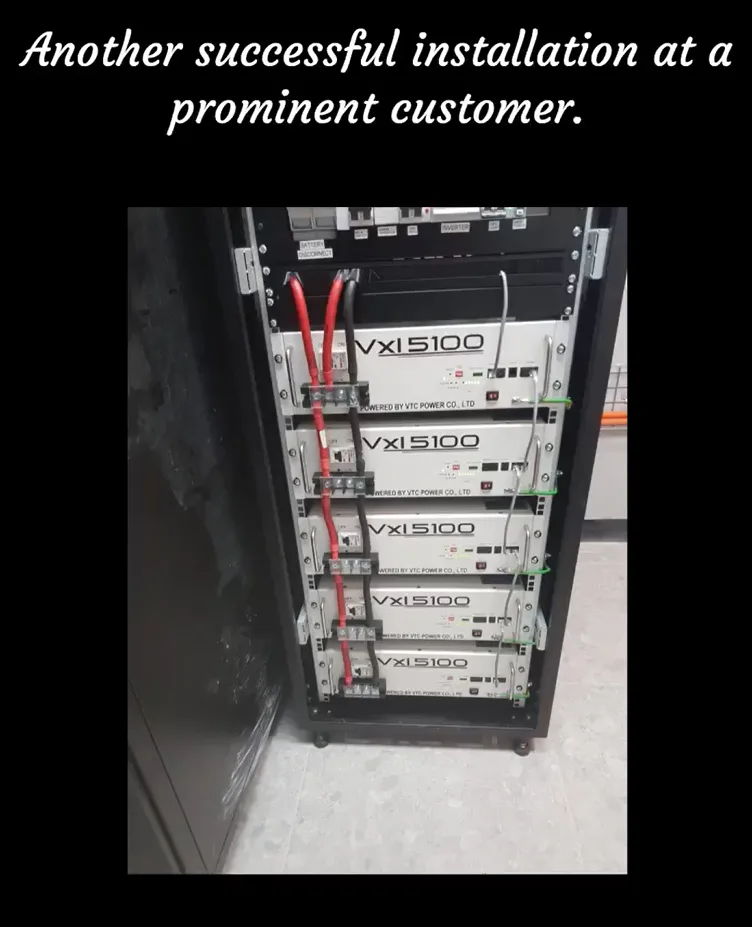

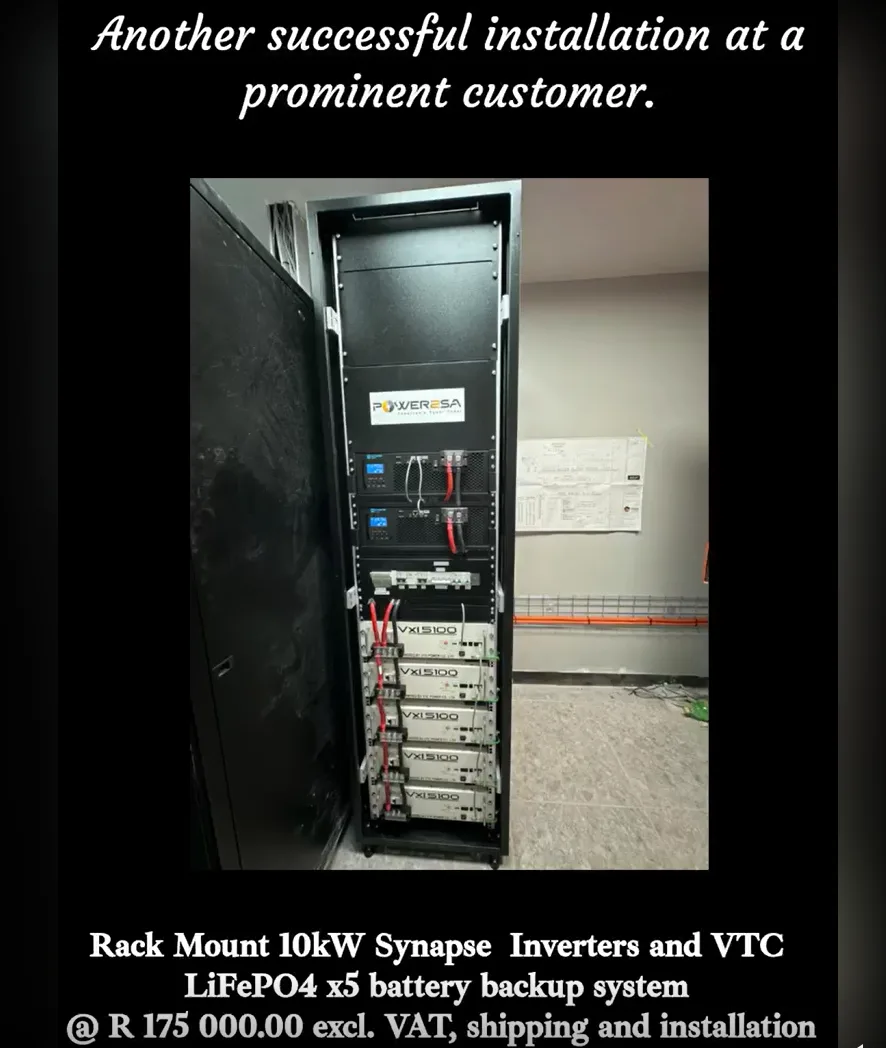

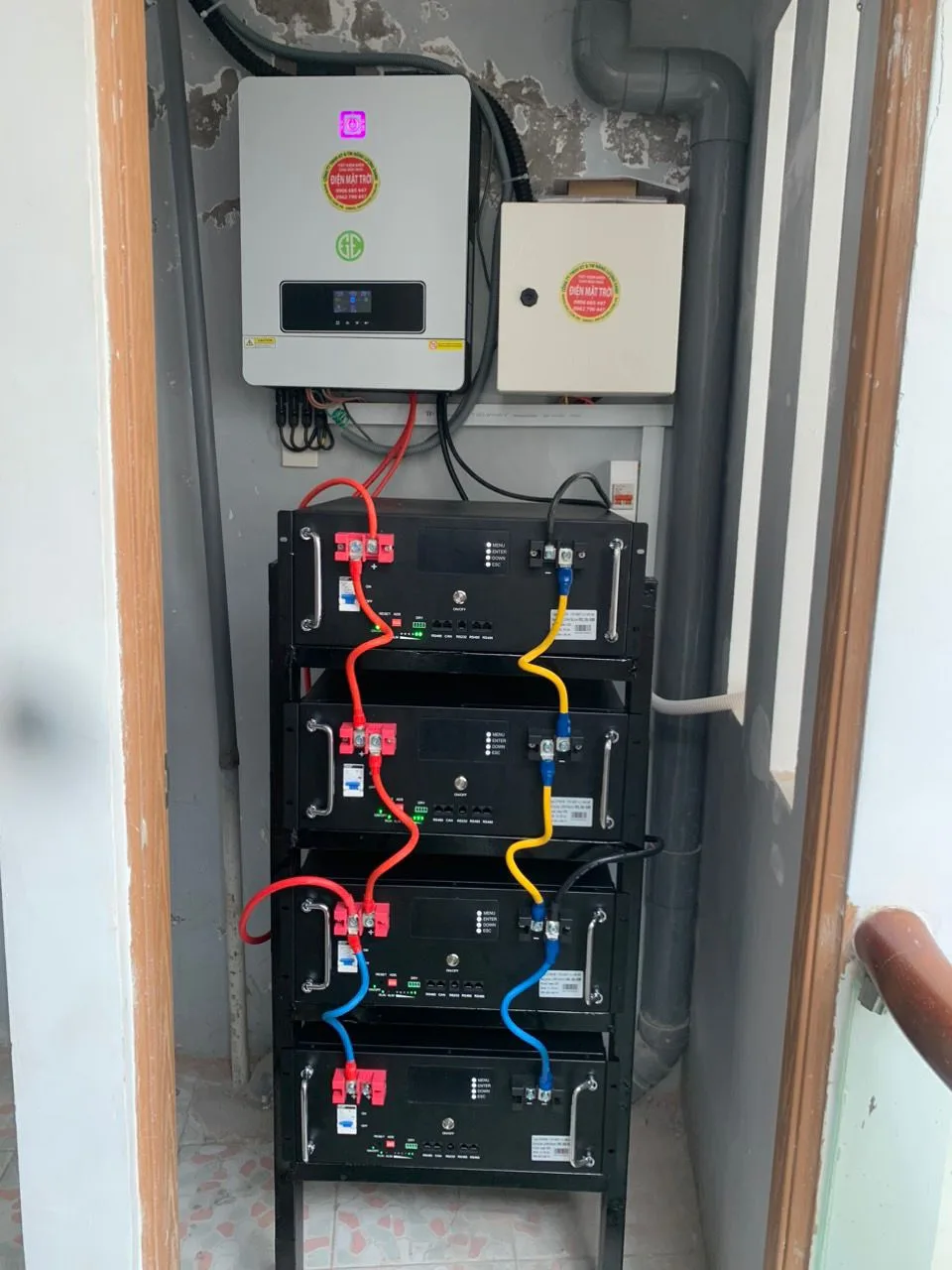

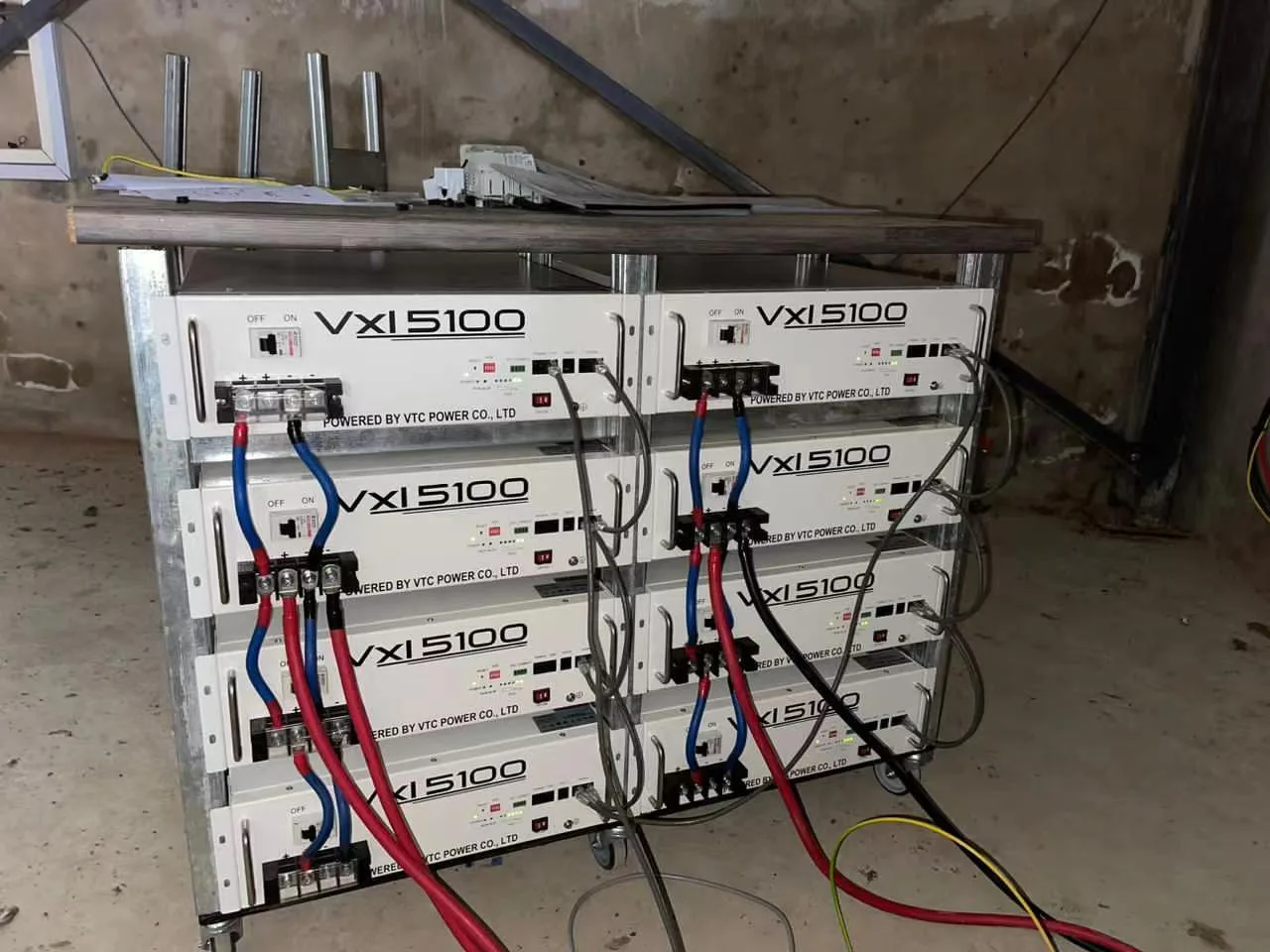

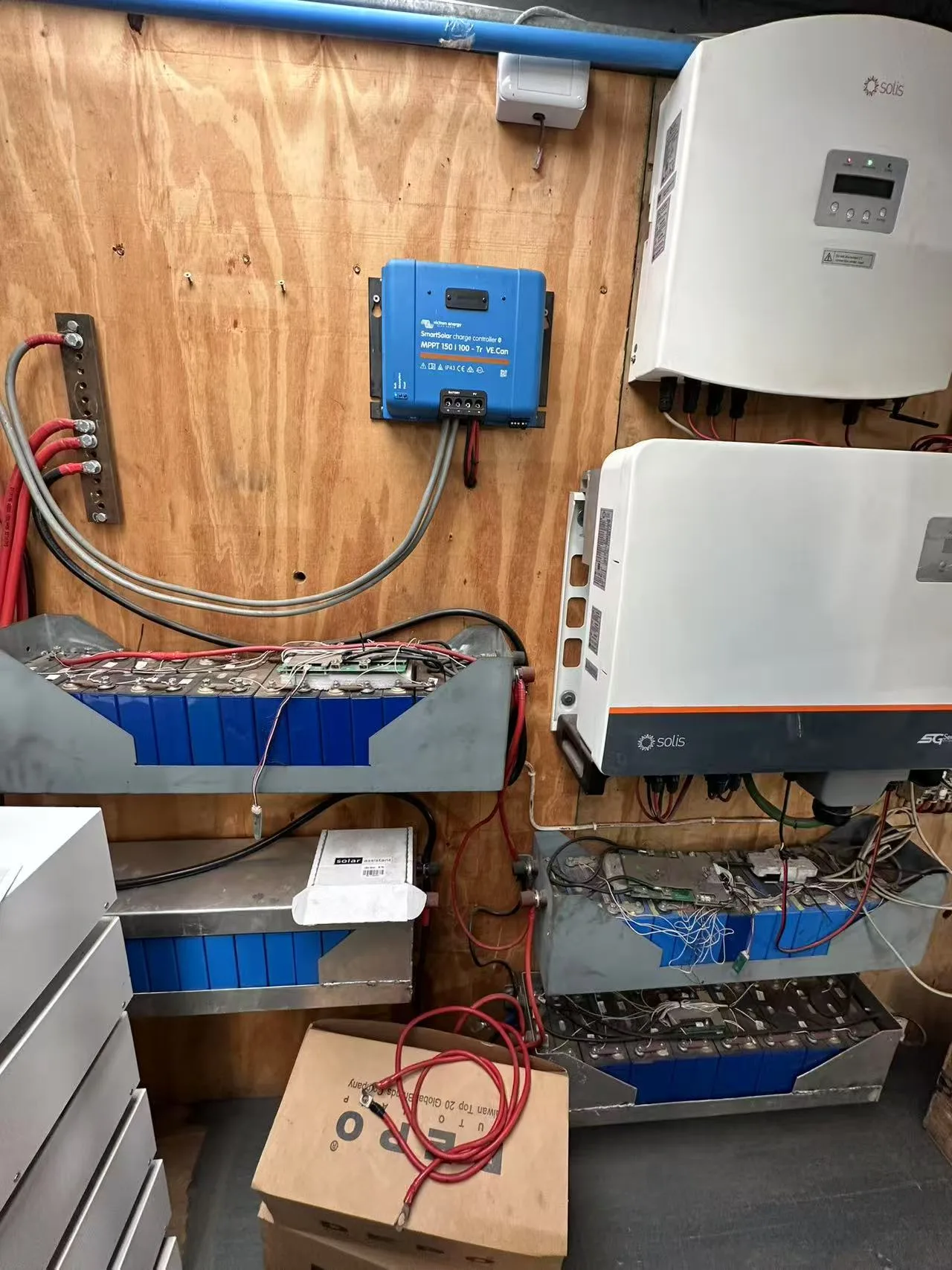

From Installation Sites to Global Shows — Every Moment Reflects Our ESS in Motion

APPENDIX

Discharge & Charge Curve

PRODUCT APPLICATION

FAQs for ,

How can the All-in-One ESS help my home during power outages?
Our ESS provides seamless backup power when the grid fails. With integrated inverter and battery management, it ensures your lights, appliances, and security systems keep running. Its silent operation and safe LiFePO₄ cells make it ideal for households needing reliable, clean backup power.
Yes. The ESS stores excess solar power during the day and discharges at night or peak times, lowering your electricity costs. By shifting energy usage from high-tariff to low-tariff hours, homeowners and businesses can save significantly on utility bills while maximizing solar investment.
Absolutely. Small businesses benefit from load-shifting and backup support. The system stabilizes energy supply, protects against outages, and reduces peak demand charges. Its compact all-in-one design makes installation quick and space-efficient, ensuring smooth operation without disrupting daily business activities.
Yes. Our All-in-One ESS is designed with modular scalability. Users can easily add battery capacity or integrate with additional solar panels. This ensures long-term flexibility, so your investment grows with your household or business energy demand.
The ESS meets international standards for electrical safety, transportation, and environmental compliance (such as CE, UL, UN38.3). Equipped with advanced BMS, it protects against overcharging, overheating, and short-circuiting, ensuring safe, stable, and reliable operation for years of use.
The system comes with a user-friendly mobile app. You can check real-time energy generation, storage status, and consumption trends anytime, anywhere. For advanced users, remote updates and intelligent alerts are supported, ensuring the system always operates at peak efficiency.
Our ESS uses LiFePO₄ cells with long cycle life, reducing waste and replacement needs. By storing renewable energy and cutting fossil fuel reliance, it helps households and businesses reduce carbon emissions, contributing to a cleaner and greener environment.
